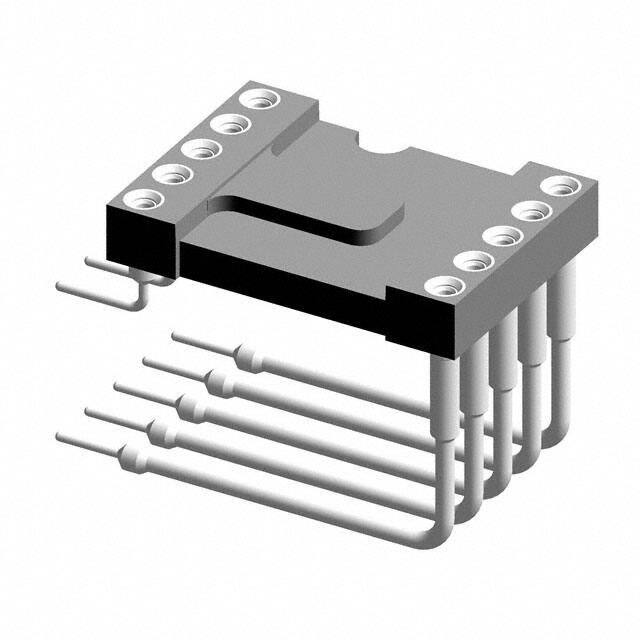

299-83-610-10-002101

Teknik Özellikler

Montaj

Horizontal, Through Hole

Contact Finish Thickness Mating

29.5μin 0.75μm

Özellikler

Closed Frame

Flammability Rating

UL94 V-0

Yayın Yılı

2012

JESD-609 Kodu

e3

Tip

DIP, 0.6 (15.24mm) Row Spacing

ECCN Kodu

EAR99

Montaj Tipi

Through Hole, Right Angle, Horizontal

Body Length Or Diameter

0.496 inch

Number Of Contacts

10

Radyasyon Dayanımı

No

Lead Length

3.2512mm

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Pitch Mating

0.100 2.54mm

Akım Değeri

1A

Ambalaj

Bulk

Contact Finish Mating

Gold

RoHS Durumu

ROHS3 Compliant

Contact Material Post

Brass

Contact Resistance

10mOhm

Pcb Contact Pattern

RECTANGULAR

Contact Material Mating

Beryllium Copper

Additional Feature

94V-0

Pitch Post

0.100 2.54mm

Contact Finish Post

Tin

Seri

299

Number Of Positions Or Pins Grid

10 (2 x 5)

Orientation

Right Angle

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mating Contact Pitch

0.1 inch

Kurşunsuz Kodu

yes

Sıra Sayısı

2

Material Flammability Rating

UL94 V-0

Contact Style

RND PIN-SKT

Termination Post Length

0.128 3.24mm

Fabrika Tedarik Süresi

10 Weeks

Dielectric Withstanding Voltage

1400VAC V

Çalışma Sıcaklığı

-55°C~125°C

Parça Durumu

Active
