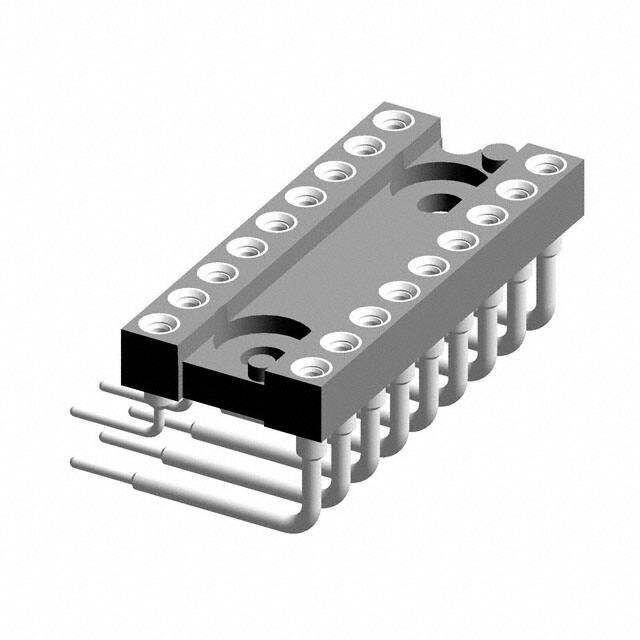

299-83-318-11-001101

Teknik Özellikler

Özellikler

Closed Frame

Flammability Rating

UL94 V-0

JESD-609 Kodu

e3

Yayın Yılı

2012

Montaj

Horizontal, Through Hole

Contact Finish Thickness Mating

29.5μin 0.75μm

ECCN Kodu

EAR99

Tip

DIP, 0.3 (7.62mm) Row Spacing

Montaj Tipi

Through Hole, Right Angle, Horizontal

Number Of Contacts

18

RoHS Durumu

ROHS3 Compliant

Contact Finish Mating

Gold

Ambalaj

Bulk

Contact Resistance

10mOhm

Pin Sayısı

18

Contact Material Post

Brass

Lead Length

3.2512mm

Pitch Mating

0.100 2.54mm

Akım Değeri

1A

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Additional Feature

94V-0

Contact Material Mating

Beryllium Copper

Number Of Positions Or Pins Grid

18 (2 x 9)

Seri

299

Contact Finish Post

Tin

Pitch Post

0.100 2.54mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Termination Post Length

0.128 3.24mm

HTS Kodu

8536.69.40.40

Terminal

Solder

Fabrika Tedarik Süresi

10 Weeks

Çalışma Sıcaklığı

-55°C~125°C

Parça Durumu

Active

Kurşunsuz Kodu

yes

Material Flammability Rating

UL94 V-0
