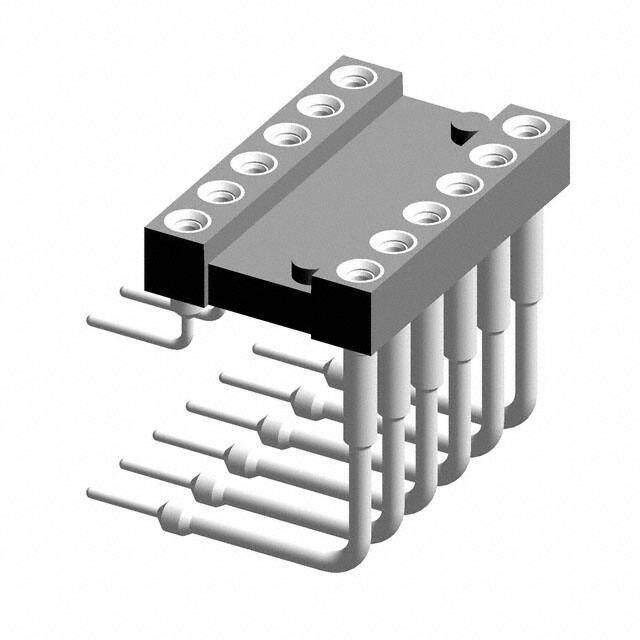

299-83-312-10-001101

Teknik Özellikler

Özellikler

Closed Frame

Flammability Rating

UL94 V-0

Yayın Yılı

2012

Voltage Rated Ac

100V

JESD-609 Kodu

e3

Montaj

Horizontal, Through Hole

Contact Finish Thickness Mating

29.5μin 0.75μm

ECCN Kodu

EAR99

Tip

DIP, 0.3 (7.62mm) Row Spacing

Montaj Tipi

Through Hole, Right Angle, Horizontal

Number Of Contacts

12

Radyasyon Dayanımı

No

Ambalaj

Bulk

RoHS Durumu

ROHS3 Compliant

Contact Finish Mating

Gold

Contact Material Post

Brass

Contact Resistance

10mOhm

Lead Length

3.2512mm

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Pitch Mating

0.100 2.54mm

Akım Değeri

1A

Additional Feature

94V-0

Contact Material Mating

Beryllium Copper

Depth

13.22mm

Seri

299

Number Of Positions Or Pins Grid

12 (2 x 6)

Contact Materials

Copper

Insulation Resistance

10GOhm

Insulation Materials

Polychlorinated

Pitch Post

0.100 2.54mm

Contact Finish Post

Tin

Row Spacing

7.62 mm

Voltage Rated Dc

150V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Uzunluk

15.2mm

Orientation

Right Angle

Termination Post Length

0.128 3.24mm

Fabrika Tedarik Süresi

10 Weeks

Çalışma Sıcaklığı

-55°C~125°C

Parça Durumu

Active
