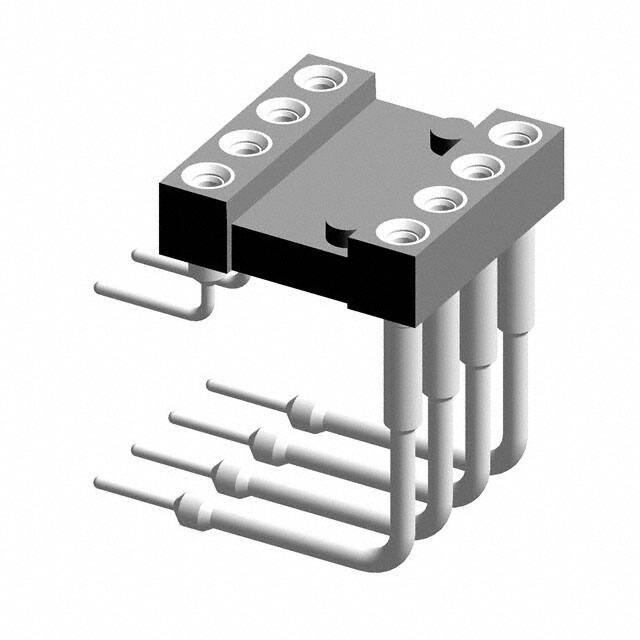

299-83-308-10-001101

Teknik Özellikler

Contact Material Mating

Beryllium Copper

Additional Feature

94V-0

Row Spacing

7.62 mm

Pitch Post

0.100 2.54mm

Insulation Materials

Polychlorinated

Contact Finish Post

Tin

Seri

299

Insulation Resistance

10GOhm

Number Of Positions Or Pins Grid

8 (2 x 4)

Contact Materials

Copper

Depth

10.1mm

Uzunluk

10.1mm

Orientation

Right Angle

Nem Hassasiyeti (MSL)

1 (Unlimited)

Voltage Rated Dc

150V

Material Flammability Rating

UL94 V-0

Sıra Sayısı

2

Kurşunsuz Kodu

yes

Parça Durumu

Active

Çalışma Sıcaklığı

-55°C~125°C

Fabrika Tedarik Süresi

10 Weeks

Terminal

Solder

Termination Post Length

0.128 3.24mm

Contact Finish Thickness Mating

29.5μin 0.75μm

Montaj

Horizontal, Through Hole

JESD-609 Kodu

e3

Yayın Yılı

2012

Voltage Rated Ac

100V

Flammability Rating

UL94 V-0

Özellikler

Closed Frame

Tip

DIP, 0.3 (7.62mm) Row Spacing

ECCN Kodu

EAR99

Number Of Contacts

8

Radyasyon Dayanımı

No

Montaj Tipi

Through Hole, Right Angle, Horizontal

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Akım Değeri

1A

Pitch Mating

0.100 2.54mm

Lead Length

3.2512mm

Contact Material Post

Brass
