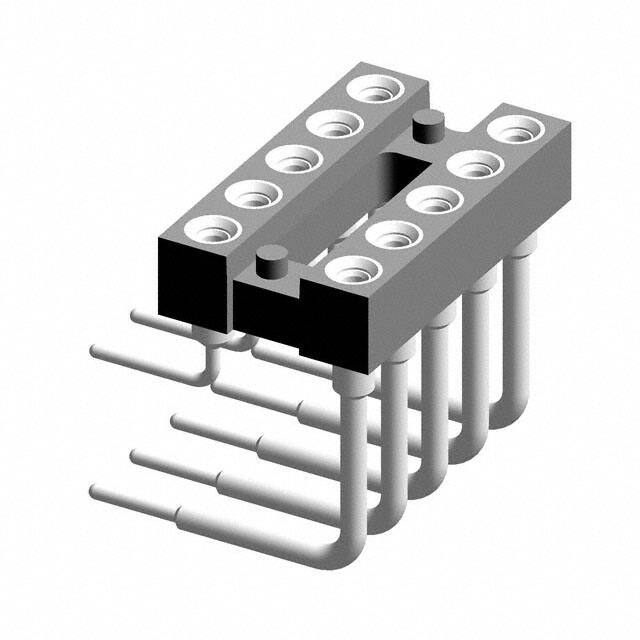

299-83-210-10-001101

Teknik Özellikler

Pcb Contact Pattern

RECTANGULAR

Contact Material Mating

Beryllium Copper

Additional Feature

94V-0

Contact Finish Post

Tin

Pitch Post

0.100 2.54mm

Number Of Positions Or Pins Grid

10 (2 x 5)

Seri

299

Orientation

Right Angle

Mating Contact Pitch

0.1 inch

Nem Hassasiyeti (MSL)

1 (Unlimited)

Sıra Sayısı

2

Kurşunsuz Kodu

yes

Material Flammability Rating

UL94 V-0

Termination Post Length

0.128 3.24mm

Contact Style

RND PIN-SKT

HTS Kodu

8536.69.40.40

Terminal

Solder

Dielectric Withstanding Voltage

1400VAC V

Çalışma Sıcaklığı

-55°C~125°C

Parça Durumu

Active

Fabrika Tedarik Süresi

10 Weeks

Montaj

Horizontal, Through Hole

Contact Finish Thickness Mating

29.5μin 0.75μm

Flammability Rating

UL94 V-0

Özellikler

Closed Frame

JESD-609 Kodu

e3

Yayın Yılı

2012

Tip

DIP, 0.2 (5.08mm) Row Spacing

ECCN Kodu

EAR99

Body Length Or Diameter

0.496 inch

Montaj Tipi

Through Hole, Right Angle, Horizontal

Radyasyon Dayanımı

No

Number Of Contacts

10

Lead Length

3.2512mm

Akım Değeri

1A

Pitch Mating

0.100 2.54mm

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Contact Finish Mating

Gold

RoHS Durumu

ROHS3 Compliant

Ambalaj

Bulk
