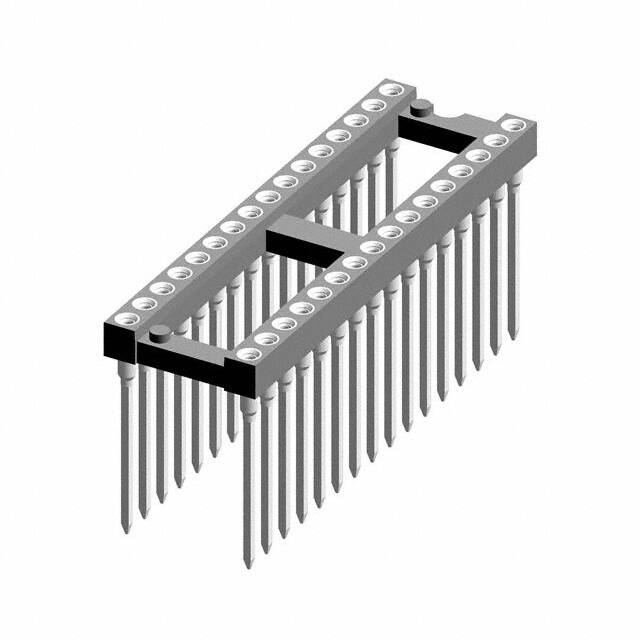

123-87-432-41-001101

Teknik Özellikler

Contact Material Mating

Beryllium Copper

Termination Post Length

0.510 12.95mm

Number Of Positions Or Pins Grid

32 (2 x 16)

Seri

123

Özellikler

Open Frame

Terminal Adımı

2.54mm

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Contact Resistance

10mOhm

Number Of Contacts

32

Body Depth

0.193 inch

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Through Hole

Parça Durumu

Active

Contact Material Post

Brass

Mating Contact Pitch

0.1 inch

Yayın Yılı

2012

Pitch Post

0.100 2.54mm

Material Flammability Rating

UL94 V-0

Body Length Or Diameter

1.597 inch

Fabrika Tedarik Süresi

10 Weeks

Dielectric Withstanding Voltage

1400VAC V

Lead Length

12.954mm

Ambalaj

Bulk

RoHS Durumu

ROHS3 Compliant

Pin Sayısı

32

Body Breadth

0.496 inch

Flammability Rating

UL94 V-0

Contact Finish Mating

Gold

Contact Finish Post

Tin

Akım Değeri

1A

Pcb Contact Pattern

RECTANGULAR

Pcb Contact Row Spacing

0.4 mm

Pitch Mating

0.100 2.54mm

Contact Style

RND PIN-SKT

Çalışma Sıcaklığı

-55°C~125°C

Terminal

Wire Wrap

Contact Finish Thickness Mating

Flash

Insulation Resistance

10000000000Ohm

Montaj

Through Hole

Tip

DIP, 0.4 (10.16mm) Row Spacing
