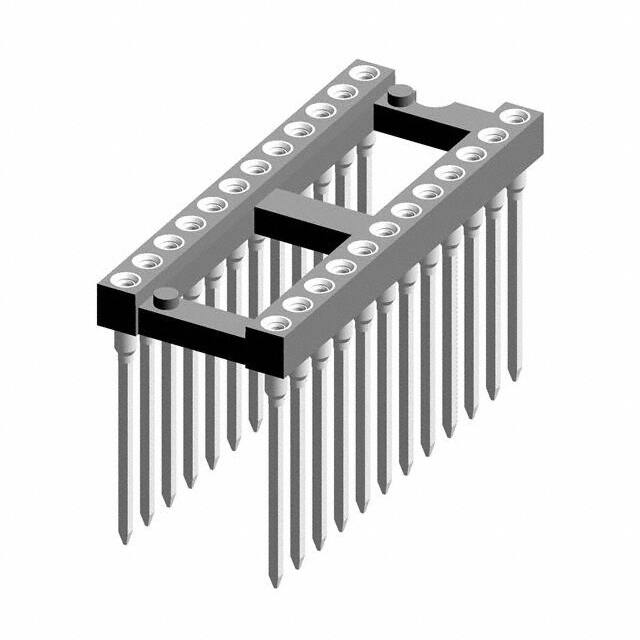

123-87-424-41-001101

Teknik Özellikler

Fabrika Tedarik Süresi

10 Weeks

Dielectric Withstanding Voltage

1400VAC V

Lead Length

12.954mm

Pin Sayısı

24

RoHS Durumu

ROHS3 Compliant

Ambalaj

Bulk

Body Breadth

0.496 inch

Flammability Rating

UL94 V-0

Contact Finish Mating

Gold

Contact Finish Post

Tin

Akım Değeri

1A

Pcb Contact Pattern

RECTANGULAR

Pcb Contact Row Spacing

0.4 mm

Pitch Mating

0.100 2.54mm

Contact Style

RND PIN-SKT

Çalışma Sıcaklığı

-55°C~125°C

Terminal

Wire Wrap

Contact Finish Thickness Mating

Flash

Insulation Resistance

10000000000Ohm

Tip

DIP, 0.4 (10.16mm) Row Spacing

Montaj

Through Hole

Termination Post Length

0.510 12.95mm

Contact Material Mating

Beryllium Copper

Number Of Positions Or Pins Grid

24 (2 x 12)

Seri

123

Terminal Adımı

2.54mm

Özellikler

Open Frame

Contact Resistance

10mOhm

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Number Of Contacts

24

Body Depth

0.193 inch

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Through Hole

Parça Durumu

Active

Contact Material Post

Brass

Mating Contact Pitch

0.1 inch

Pitch Post

0.100 2.54mm

Yayın Yılı

2012

Body Length Or Diameter

1.197 inch

Material Flammability Rating

UL94 V-0
