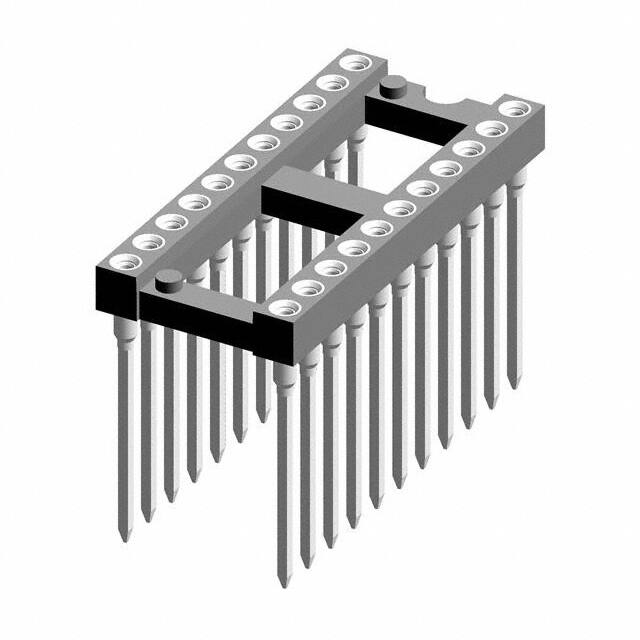

123-87-422-41-001101

Teknik Özellikler

Material Flammability Rating

UL94 V-0

Body Length Or Diameter

1.097 inch

Yayın Yılı

2012

Pitch Post

0.100 2.54mm

Mating Contact Pitch

0.1 inch

Contact Material Post

Brass

Parça Durumu

Active

Montaj Tipi

Through Hole

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Contacts

22

Body Depth

0.193 inch

Contact Resistance

10mOhm

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Özellikler

Open Frame

Terminal Adımı

2.54mm

Seri

123

Number Of Positions Or Pins Grid

22 (2 x 11)

Contact Material Mating

Beryllium Copper

Termination Post Length

0.510 12.95mm

Montaj

Through Hole

Tip

DIP, 0.4 (10.16mm) Row Spacing

Insulation Resistance

10000000000Ohm

Contact Finish Thickness Mating

Flash

Terminal

Wire Wrap

Çalışma Sıcaklığı

-55°C~125°C

Pitch Mating

0.100 2.54mm

Contact Style

RND PIN-SKT

Pcb Contact Pattern

RECTANGULAR

Pcb Contact Row Spacing

0.4 mm

Akım Değeri

1A

Body Breadth

0.496 inch

Contact Finish Post

Tin

Contact Finish Mating

Gold

Flammability Rating

UL94 V-0

Pin Sayısı

22

RoHS Durumu

ROHS3 Compliant

Ambalaj

Bulk

Lead Length

12.954mm

Dielectric Withstanding Voltage

1400VAC V

Fabrika Tedarik Süresi

10 Weeks
