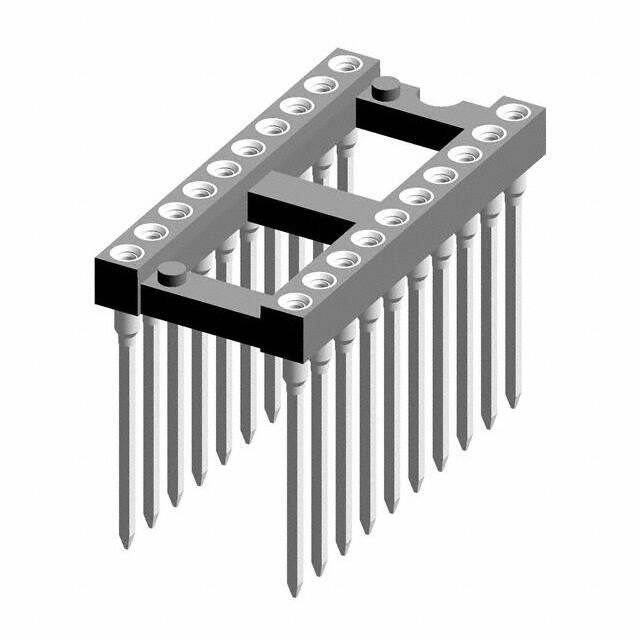

123-87-420-41-001101

Teknik Özellikler

Dielectric Withstanding Voltage

1400VAC V

Lead Length

12.954mm

Fabrika Tedarik Süresi

10 Weeks

Ambalaj

Bulk

RoHS Durumu

ROHS3 Compliant

Pin Sayısı

20

Contact Finish Post

Tin

Contact Finish Mating

Gold

Flammability Rating

UL94 V-0

Body Breadth

0.496 inch

Pcb Contact Row Spacing

0.4 mm

Pcb Contact Pattern

RECTANGULAR

Contact Style

RND PIN-SKT

Pitch Mating

0.100 2.54mm

Akım Değeri

1A

Insulation Resistance

10000000000Ohm

Tip

DIP, 0.4 (10.16mm) Row Spacing

Montaj

Through Hole

Çalışma Sıcaklığı

-55°C~125°C

Contact Finish Thickness Mating

Flash

Terminal

Wire Wrap

Özellikler

Open Frame

Terminal Adımı

2.54mm

Contact Material Mating

Beryllium Copper

Termination Post Length

0.510 12.95mm

Number Of Positions Or Pins Grid

20 (2 x 10)

Seri

123

Number Of Contacts

20

Body Depth

0.193 inch

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Resistance

10mOhm

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Parça Durumu

Active

Contact Material Post

Brass

Montaj Tipi

Through Hole

Body Length Or Diameter

0.997 inch

Material Flammability Rating

UL94 V-0

Mating Contact Pitch

0.1 inch

Yayın Yılı

2012

Pitch Post

0.100 2.54mm
