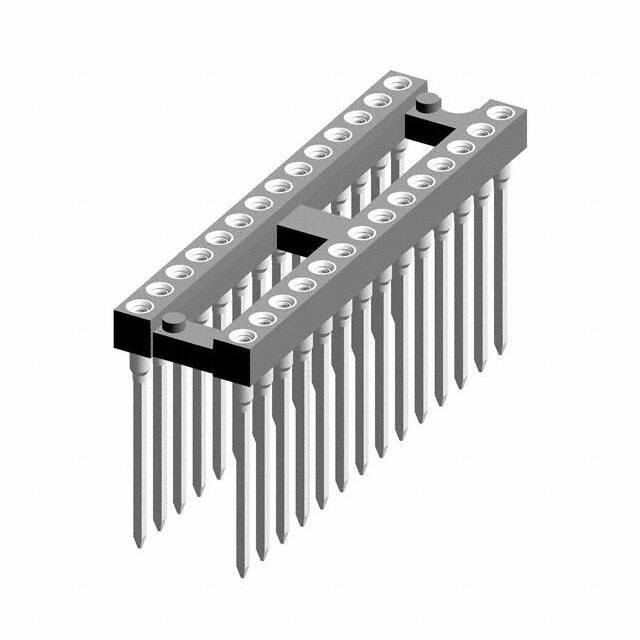

123-87-328-41-001101

Teknik Özellikler

Pin Sayısı

28

RoHS Durumu

ROHS3 Compliant

Ambalaj

Bulk

Body Breadth

0.398 inch

Contact Finish Post

Tin

Contact Finish Mating

Gold

Flammability Rating

UL94 V-0

Dielectric Withstanding Voltage

1400VAC V

Lead Length

12.954mm

Fabrika Tedarik Süresi

10 Weeks

Insulation Resistance

10000000000Ohm

Montaj

Through Hole

Tip

DIP, 0.3 (7.62mm) Row Spacing

Çalışma Sıcaklığı

-55°C~125°C

Contact Finish Thickness Mating

Flash

Terminal

Wire Wrap

Pcb Contact Pattern

RECTANGULAR

Pcb Contact Row Spacing

0.3 mm

Pitch Mating

0.100 2.54mm

Contact Style

RND PIN-SKT

Akım Değeri

1A

Number Of Contacts

28

Body Depth

0.193 inch

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Resistance

10mOhm

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Özellikler

Open Frame

Terminal Adımı

2.54mm

Contact Material Mating

Beryllium Copper

Termination Post Length

0.510 12.95mm

Seri

123

Number Of Positions Or Pins Grid

28 (2 x 14)

Material Flammability Rating

UL94 V-0

Body Length Or Diameter

1.397 inch

Mating Contact Pitch

0.1 inch

HTS Kodu

8536.69.40.40

Yayın Yılı

2012

Pitch Post

0.100 2.54mm

Parça Durumu

Active

Contact Material Post

Brass
