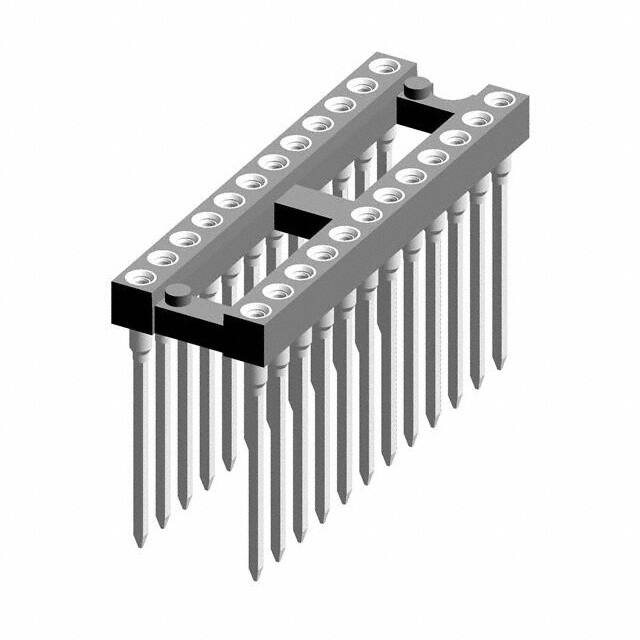

123-87-324-41-001101

Teknik Özellikler

Lead Length

12.954mm

Dielectric Withstanding Voltage

1400VAC V

Fabrika Tedarik Süresi

10 Weeks

Contact Finish Post

Tin

Contact Finish Mating

Gold

Flammability Rating

UL94 V-0

Body Breadth

0.398 inch

Pin Sayısı

24

Ambalaj

Bulk

RoHS Durumu

ROHS3 Compliant

Contact Style

RND PIN-SKT

Pitch Mating

0.100 2.54mm

Pcb Contact Row Spacing

0.3 mm

Pcb Contact Pattern

RECTANGULAR

Akım Değeri

1A

Montaj

Through Hole

Tip

DIP, 0.3 (7.62mm) Row Spacing

Insulation Resistance

10000000000Ohm

Contact Finish Thickness Mating

Flash

Terminal

Wire Wrap

Çalışma Sıcaklığı

-55°C~125°C

Özellikler

Open Frame

Terminal Adımı

2.54mm

Number Of Positions Or Pins Grid

24 (2 x 12)

Seri

123

Contact Material Mating

Beryllium Copper

Termination Post Length

0.510 12.95mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Body Depth

0.193 inch

Number Of Contacts

24

Contact Resistance

10mOhm

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Contact Material Post

Brass

Parça Durumu

Active

Montaj Tipi

Through Hole

Material Flammability Rating

UL94 V-0

Body Length Or Diameter

1.197 inch

Yayın Yılı

2012

Pitch Post

0.100 2.54mm

Mating Contact Pitch

0.1 inch
