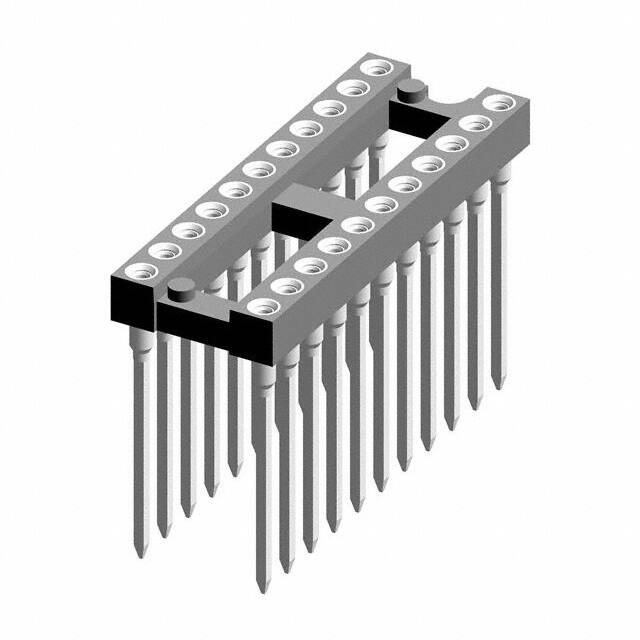

123-87-322-41-001101

Teknik Özellikler

Dielectric Withstanding Voltage

1400VAC V

Lead Length

12.954mm

Fabrika Tedarik Süresi

10 Weeks

Pin Sayısı

22

Ambalaj

Bulk

RoHS Durumu

ROHS3 Compliant

Flammability Rating

UL94 V-0

Contact Finish Mating

Gold

Contact Finish Post

Tin

Body Breadth

0.398 inch

Pcb Contact Row Spacing

0.3 mm

Pcb Contact Pattern

RECTANGULAR

Contact Style

RND PIN-SKT

Pitch Mating

0.100 2.54mm

Akım Değeri

1A

Insulation Resistance

10000000000Ohm

Tip

DIP, 0.3 (7.62mm) Row Spacing

Montaj

Through Hole

Çalışma Sıcaklığı

-55°C~125°C

Terminal

Wire Wrap

Contact Finish Thickness Mating

Flash

Terminal Adımı

2.54mm

Özellikler

Open Frame

Termination Post Length

0.510 12.95mm

Contact Material Mating

Beryllium Copper

Number Of Positions Or Pins Grid

22 (2 x 11)

Seri

123

Number Of Contacts

22

Body Depth

0.193 inch

Nem Hassasiyeti (MSL)

1 (Unlimited)

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Contact Resistance

10mOhm

Parça Durumu

Active

Contact Material Post

Brass

Montaj Tipi

Through Hole

Body Length Or Diameter

1.097 inch

Material Flammability Rating

UL94 V-0

Mating Contact Pitch

0.1 inch

Pitch Post

0.100 2.54mm

Yayın Yılı

2012
