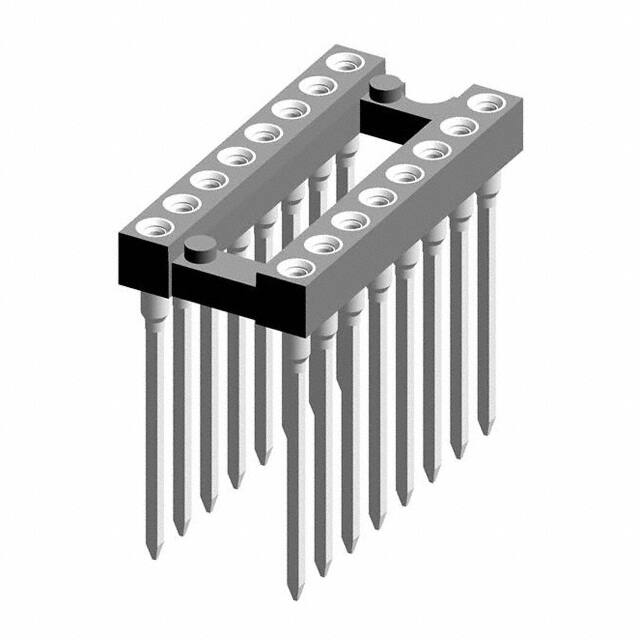

123-87-316-41-001101

Teknik Özellikler

Contact Resistance

10mOhm

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Contacts

16

Body Depth

0.193 inch

Number Of Positions Or Pins Grid

16 (2 x 8)

Seri

123

Contact Material Mating

Beryllium Copper

Termination Post Length

0.510 12.95mm

Özellikler

Open Frame

Terminal Adımı

2.54mm

Pitch Post

0.100 2.54mm

Yayın Yılı

2012

HTS Kodu

8536.69.40.40

Mating Contact Pitch

0.1 inch

Body Length Or Diameter

0.797 inch

Material Flammability Rating

UL94 V-0

ECCN Kodu

EAR99

Montaj Tipi

Through Hole

Contact Material Post

Brass

Parça Durumu

Active

Body Breadth

0.398 inch

Contact Finish Post

Tin

Contact Finish Mating

Gold

RoHS Durumu

ROHS3 Compliant

Ambalaj

Tube

Pin Sayısı

16

Fabrika Tedarik Süresi

10 Weeks

Dielectric Withstanding Voltage

1400VAC V

Contact Finish Thickness Mating

Flash

Terminal

Wire Wrap

Çalışma Sıcaklığı

-55°C~125°C

Tip

DIP, 0.3 (7.62mm) Row Spacing

Current Rating Amps

1A

Insulation Resistance

10000000000Ohm

Pitch Mating

0.100 2.54mm

Contact Style

RND PIN-SKT

Pcb Contact Pattern

RECTANGULAR

Pcb Contact Row Spacing

0.3 mm
