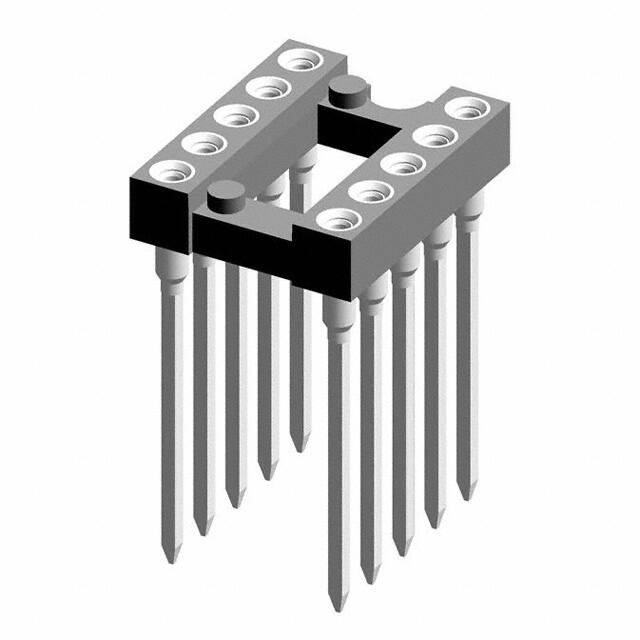

123-87-310-41-001101

Teknik Özellikler

Mating Contact Pitch

0.1 inch

HTS Kodu

8536.69.40.40

Yayın Yılı

2012

Pitch Post

0.100 2.54mm

Material Flammability Rating

UL94 V-0

Body Length Or Diameter

0.497 inch

Montaj Tipi

Through Hole

ECCN Kodu

EAR99

Parça Durumu

Active

Contact Material Post

Brass

Contact Resistance

10mOhm

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Number Of Contacts

10

Body Depth

0.193 inch

Nem Hassasiyeti (MSL)

1 (Unlimited)

Termination Post Length

0.510 12.95mm

Contact Material Mating

Beryllium Copper

Number Of Positions Or Pins Grid

10 (2 x 5)

Seri

123

Terminal Adımı

2.54mm

Özellikler

Open Frame

Çalışma Sıcaklığı

-55°C~125°C

Contact Finish Thickness Mating

Flash

Terminal

Wire Wrap

Montaj

Through Hole

Tip

DIP, 0.3 (7.62mm) Row Spacing

Akım Değeri

1A

Pcb Contact Row Spacing

0.3 mm

Pcb Contact Pattern

RECTANGULAR

Contact Style

RND PIN-SKT

Pitch Mating

0.100 2.54mm

Ambalaj

Bulk

RoHS Durumu

ROHS3 Compliant

Pin Sayısı

10

Flammability Rating

UL94 V-0

Contact Finish Mating

Gold

Contact Finish Post

Tin

Body Breadth

0.398 inch

Fabrika Tedarik Süresi

10 Weeks

Dielectric Withstanding Voltage

1400VAC V
