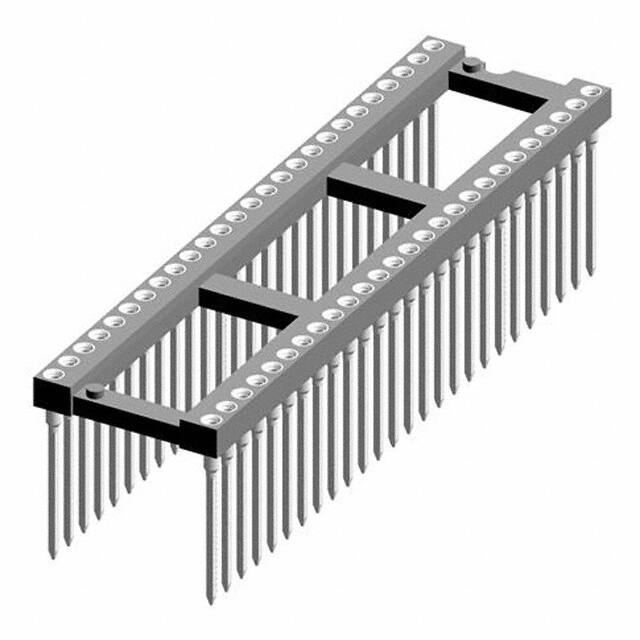

123-83-652-41-001101

Teknik Özellikler

Body Length Or Diameter

2.597 inch

Material Flammability Rating

UL94 V-0

Pitch Post

0.100 2.54mm

Yayın Yılı

2012

Mating Contact Pitch

0.1 inch

Contact Material Post

Brass

Parça Durumu

Active

Montaj Tipi

Through Hole

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Contacts

52

Body Depth

0.193 inch

Contact Resistance

10mOhm

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Terminal Adımı

2.54mm

Özellikler

Open Frame

Number Of Positions Or Pins Grid

52 (2 x 26)

Seri

123

Termination Post Length

0.510 12.95mm

Contact Material Mating

Beryllium Copper

Tip

DIP, 0.6 (15.24mm) Row Spacing

Montaj

Through Hole

Insulation Resistance

10000000000Ohm

Terminal

Wire Wrap

Contact Finish Thickness Mating

29.5μin 0.75μm

Çalışma Sıcaklığı

-55°C~125°C

Pitch Mating

0.100 2.54mm

Contact Style

RND PIN-SKT

Pcb Contact Pattern

RECTANGULAR

Pcb Contact Row Spacing

0.6 mm

Akım Değeri

1A

Body Breadth

0.697 inch

Flammability Rating

UL94 V-0

Contact Finish Post

Tin

Contact Finish Mating

Gold

Pin Sayısı

52

RoHS Durumu

ROHS3 Compliant

Ambalaj

Bulk

Lead Length

12.954mm

Dielectric Withstanding Voltage

1400VAC V

Fabrika Tedarik Süresi

10 Weeks
