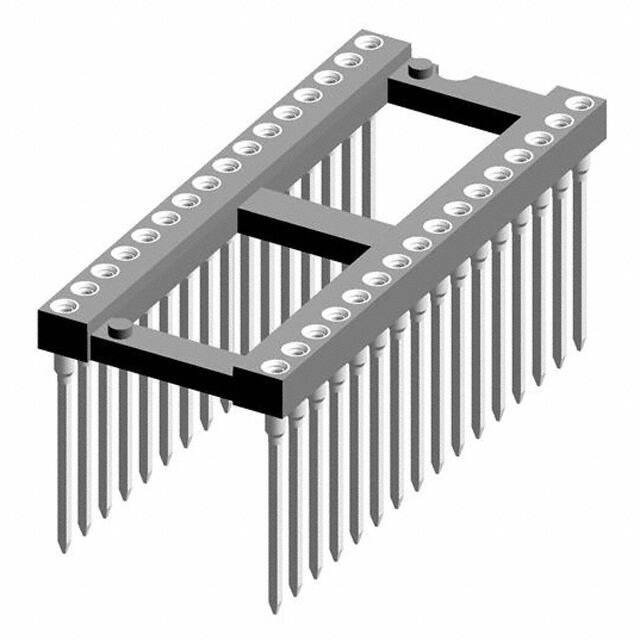

123-83-632-41-001101

Teknik Özellikler

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Contacts

32

Body Depth

0.193 inch

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Contact Resistance

10mOhm

Özellikler

Open Frame

Terminal Adımı

2.54mm

Number Of Positions Or Pins Grid

32 (2 x 16)

Seri

123

Contact Material Mating

Beryllium Copper

Termination Post Length

0.510 12.95mm

Material Flammability Rating

UL94 V-0

Body Length Or Diameter

1.597 inch

Yayın Yılı

2012

Pitch Post

0.100 2.54mm

Mating Contact Pitch

0.1 inch

Contact Material Post

Brass

Parça Durumu

Active

Montaj Tipi

Through Hole

Contact Finish Post

Tin

Contact Finish Mating

Gold

Flammability Rating

UL94 V-0

Body Breadth

0.697 inch

Pin Sayısı

32

Ambalaj

Bulk

RoHS Durumu

ROHS3 Compliant

Lead Length

12.954mm

Dielectric Withstanding Voltage

1400VAC V

Fabrika Tedarik Süresi

10 Weeks

Montaj

Through Hole

Tip

DIP, 0.6 (15.24mm) Row Spacing

Insulation Resistance

10000000000Ohm

Contact Finish Thickness Mating

29.5μin 0.75μm

Terminal

Wire Wrap

Çalışma Sıcaklığı

-55°C~125°C

Contact Style

RND PIN-SKT

Pitch Mating

0.100 2.54mm

Pcb Contact Row Spacing

0.6 mm

Pcb Contact Pattern

RECTANGULAR

Akım Değeri

1A
