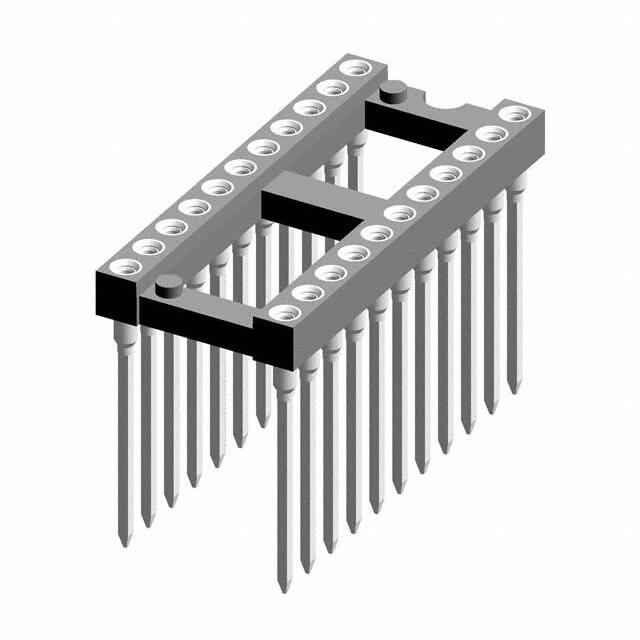

123-83-422-41-001101

Teknik Özellikler

Özellikler

Open Frame

Contact Material Mating

Beryllium Copper

Insulation Materials

Polychlorinated

Termination Post Length

0.510 12.95mm

Number Of Positions Or Pins Grid

22 (2 x 11)

Seri

123

Number Of Contacts

22

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Resistance

10mOhm

Orientation

Straight

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Voltage Rated Dc

150V

Parça Durumu

Active

Contact Material Post

Brass

Montaj Tipi

Through Hole

Material Flammability Rating

UL94 V-0

Mating Contact Pitch

0.1 inch

Yayın Yılı

2012

Pitch Post

0.100 2.54mm

Dielectric Withstanding Voltage

1400VAC V

Lead Length

12.954mm

Fabrika Tedarik Süresi

10 Weeks

Row Spacing

10.16 mm

Contact Materials

Copper

RoHS Durumu

ROHS3 Compliant

Ambalaj

Bulk

Voltage Rated Ac

100V

Contact Finish Post

Tin

Contact Finish Mating

Gold

Flammability Rating

UL94 V-0

Body Breadth

0.496 inch

Depth

12.6mm

Pcb Contact Pattern

RECTANGULAR

Contact Style

RND PIN-SKT

Pitch Mating

0.100 2.54mm

Uzunluk

27.8mm

Akım Değeri

1A

Insulation Resistance

10GOhm

Montaj

Through Hole

Tip

DIP, 0.4 (10.16mm) Row Spacing
