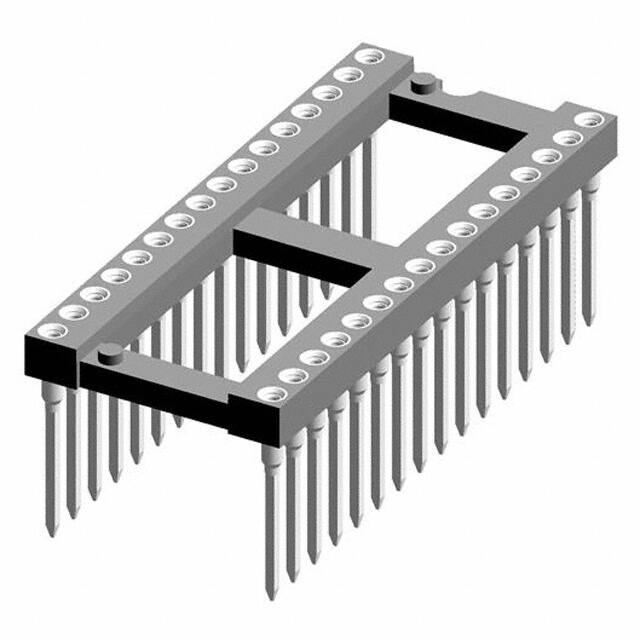

122-87-632-41-001101

Teknik Özellikler

Özellikler

Open Frame

Contact Finish Post

Tin

Dielectric Withstanding Voltage

1400VAC V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal Adımı

2.54mm

RoHS Durumu

ROHS3 Compliant

Yayın Yılı

2012

Contact Material Post

Brass

Ambalaj

Bulk

Seri

122

Parça Durumu

Active

Mating Contact Pitch

0.1 inch

Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

10 Weeks

Lead Length

9.398mm

Body Length Or Diameter

1.597 inch

Material Flammability Rating

UL94 V-0

Pitch Post

0.100 2.54mm

Pcb Contact Row Spacing

0.2 mm

Tip

DIP, 0.6 (15.24mm) Row Spacing

Pcb Contact Pattern

RECTANGULAR

Montaj Tipi

Through Hole

Contact Style

RND PIN-SKT

Çalışma Sıcaklığı

-55°C~125°C

Number Of Contacts

32

Akım Değeri

1A

Terminal

Wire Wrap

Contact Finish Thickness Mating

Flash

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Insulation Resistance

10000000000Ohm

Pitch Mating

0.100 2.54mm

Contact Material Mating

Beryllium Copper

Montaj

Through Hole

Termination Post Length

0.370 9.40mm

Number Of Positions Or Pins Grid

32 (2 x 16)

Pin Sayısı

32

Body Breadth

0.697 inch

Body Depth

0.193 inch

Contact Finish Mating

Gold

Contact Resistance

10mOhm
