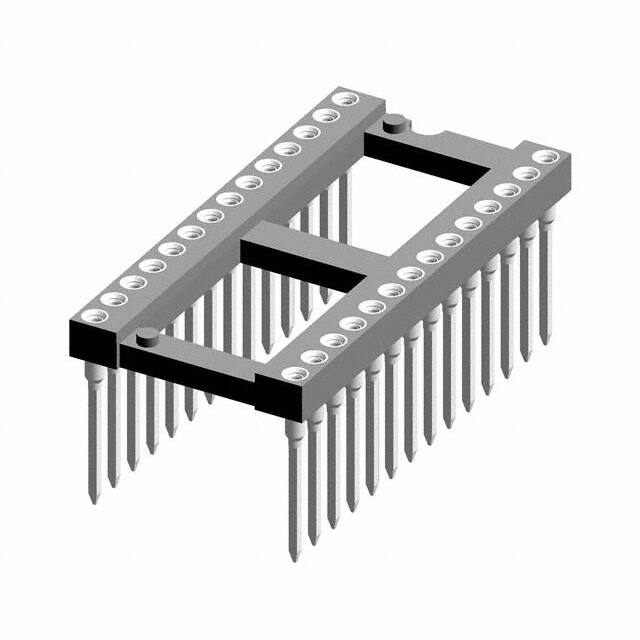

122-87-628-41-001101

Teknik Özellikler

Seri

122

Ambalaj

Bulk

Contact Material Post

Brass

Yayın Yılı

2012

RoHS Durumu

ROHS3 Compliant

Terminal Adımı

2.54mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Dielectric Withstanding Voltage

1400VAC V

Özellikler

Open Frame

Contact Finish Post

Tin

Pcb Contact Row Spacing

0.2 mm

Pcb Contact Pattern

RECTANGULAR

Tip

DIP, 0.6 (15.24mm) Row Spacing

Pitch Post

0.100 2.54mm

Material Flammability Rating

UL94 V-0

Lead Length

9.398mm

Fabrika Tedarik Süresi

10 Weeks

Body Length Or Diameter

1.397 inch

Parça Durumu

Active

Mating Contact Pitch

0.1 inch

Flammability Rating

UL94 V-0

Contact Finish Thickness Mating

Flash

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Terminal

Wire Wrap

Akım Değeri

1A

Number Of Contacts

28

Contact Style

RND PIN-SKT

Çalışma Sıcaklığı

-55°C~125°C

Montaj Tipi

Through Hole

Contact Resistance

10mOhm

Contact Finish Mating

Gold

Body Breadth

0.697 inch

Body Depth

0.193 inch

Number Of Positions Or Pins Grid

28 (2 x 14)

Pin Sayısı

28

Montaj

Through Hole

Termination Post Length

0.370 9.40mm

Contact Material Mating

Beryllium Copper

Pitch Mating

0.100 2.54mm

Insulation Resistance

10000000000Ohm
