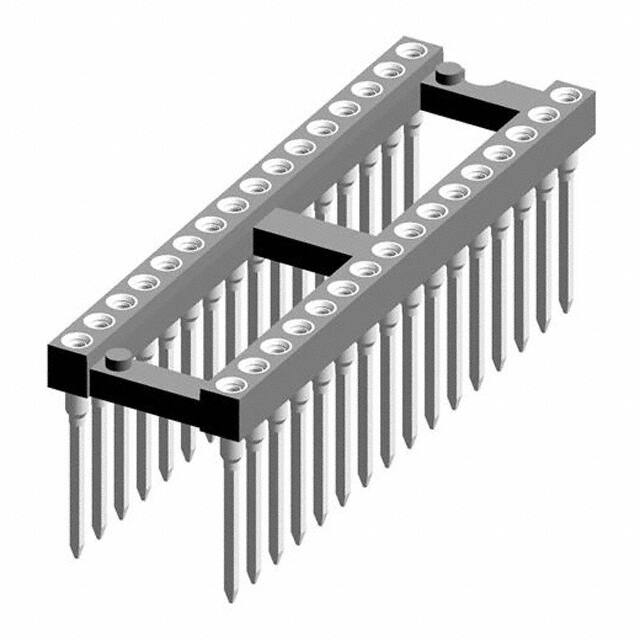

122-87-432-41-001101

Teknik Özellikler

Tip

DIP, 0.4 (10.16mm) Row Spacing

Pcb Contact Pattern

RECTANGULAR

Pcb Contact Row Spacing

0.2 mm

Pitch Post

0.100 2.54mm

Material Flammability Rating

UL94 V-0

Body Length Or Diameter

1.597 inch

Lead Length

9.398mm

Fabrika Tedarik Süresi

10 Weeks

Flammability Rating

UL94 V-0

Mating Contact Pitch

0.1 inch

Parça Durumu

Active

Seri

122

Ambalaj

Bulk

Contact Material Post

Brass

Yayın Yılı

2012

RoHS Durumu

ROHS3 Compliant

Terminal Adımı

2.54mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Dielectric Withstanding Voltage

1400VAC V

Contact Finish Post

Tin

Özellikler

Open Frame

Contact Resistance

10mOhm

Contact Finish Mating

Gold

Body Breadth

0.496 inch

Body Depth

0.193 inch

Pin Sayısı

32

Number Of Positions Or Pins Grid

32 (2 x 16)

Termination Post Length

0.370 9.40mm

Montaj

Through Hole

Pitch Mating

0.100 2.54mm

Contact Material Mating

Beryllium Copper

Insulation Resistance

10000000000Ohm

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Contact Finish Thickness Mating

Flash

Terminal

Wire Wrap

Akım Değeri

1A

Number Of Contacts

32

Çalışma Sıcaklığı

-55°C~125°C

Contact Style

RND PIN-SKT

Montaj Tipi

Through Hole
