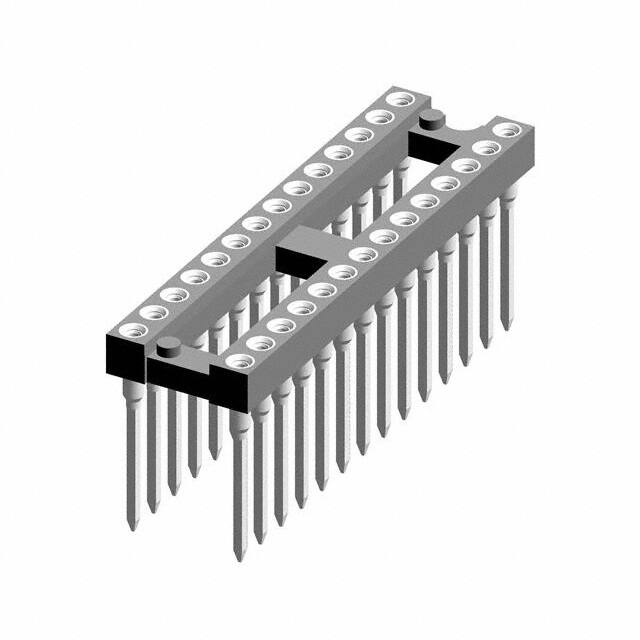

122-87-328-41-001101

Teknik Özellikler

Contact Material Mating

Beryllium Copper

Pitch Mating

0.100 2.54mm

Insulation Resistance

10000000000Ohm

Number Of Positions Or Pins Grid

28 (2 x 14)

Pin Sayısı

28

Montaj

Through Hole

Termination Post Length

0.370 9.40mm

Body Breadth

0.398 inch

Body Depth

0.193 inch

Contact Resistance

10mOhm

Contact Finish Mating

Gold

Contact Style

RND PIN-SKT

Çalışma Sıcaklığı

-55°C~125°C

Montaj Tipi

Through Hole

Akım Değeri

1A

Number Of Contacts

28

Terminal

Wire Wrap

Contact Finish Thickness Mating

Flash

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Fabrika Tedarik Süresi

10 Weeks

Lead Length

9.398mm

Body Length Or Diameter

1.397 inch

Parça Durumu

Active

Mating Contact Pitch

0.1 inch

Flammability Rating

UL94 V-0

Material Flammability Rating

UL94 V-0

Pitch Post

0.100 2.54mm

Pcb Contact Row Spacing

0.2 mm

Tip

DIP, 0.3 (7.62mm) Row Spacing

Pcb Contact Pattern

RECTANGULAR

Nem Hassasiyeti (MSL)

1 (Unlimited)

Dielectric Withstanding Voltage

1400VAC V

Özellikler

Open Frame

Contact Finish Post

Tin

RoHS Durumu

ROHS3 Compliant

Terminal Adımı

2.54mm

Contact Material Post

Brass

Yayın Yılı

2012

Seri

122

Ambalaj

Bulk
