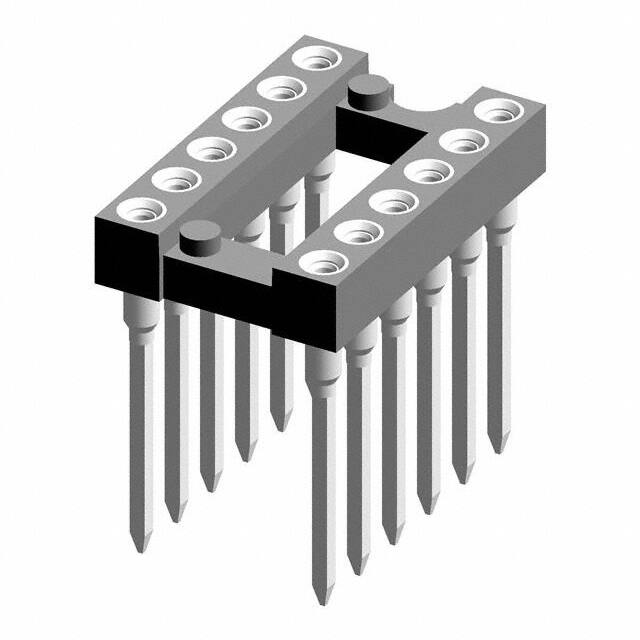

122-87-312-41-001101

Teknik Özellikler

Body Breadth

0.398 inch

Body Depth

0.193 inch

Contact Finish Mating

Gold

Contact Resistance

10mOhm

Insulation Resistance

10000000000Ohm

Pitch Mating

0.100 2.54mm

Contact Material Mating

Beryllium Copper

Termination Post Length

0.370 9.40mm

Montaj

Through Hole

Pin Sayısı

12

Number Of Positions Or Pins Grid

12 (2 x 6)

Terminal

Wire Wrap

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Contact Finish Thickness Mating

Flash

Montaj Tipi

Through Hole

Çalışma Sıcaklığı

-55°C~125°C

Contact Style

RND PIN-SKT

Number Of Contacts

12

Akım Değeri

1A

Pitch Post

0.100 2.54mm

Tip

DIP, 0.3 (7.62mm) Row Spacing

Pcb Contact Pattern

RECTANGULAR

Pcb Contact Row Spacing

0.2 mm

Flammability Rating

UL94 V-0

Mating Contact Pitch

0.1 inch

Parça Durumu

Active

Body Length Or Diameter

0.597 inch

Lead Length

9.398mm

Fabrika Tedarik Süresi

10 Weeks

Material Flammability Rating

UL94 V-0

Yayın Yılı

2012

Contact Material Post

Brass

Ambalaj

Bulk

Seri

122

Contact Finish Post

Tin

Özellikler

Open Frame

Dielectric Withstanding Voltage

1400VAC V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal Adımı

2.54mm

RoHS Durumu

ROHS3 Compliant
