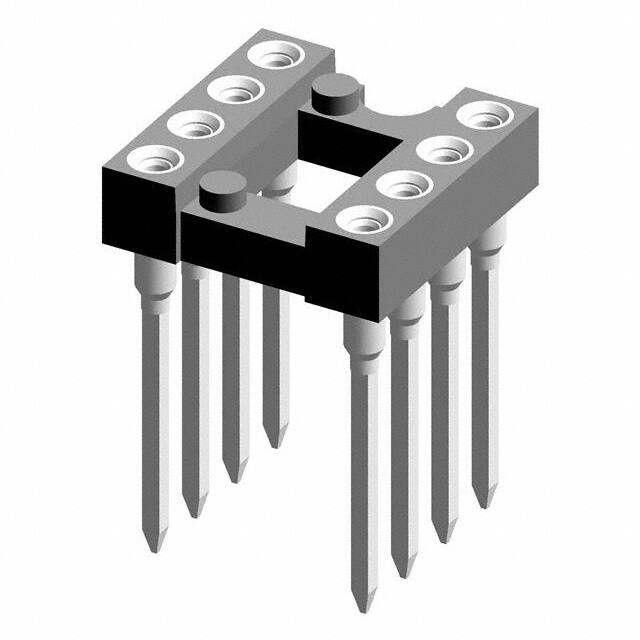

122-83-308-41-001101

Teknik Özellikler

Çalışma Sıcaklığı

-55°C~125°C

Contact Style

RND PIN-SKT

Montaj Tipi

Through Hole

Akım Değeri

1A

Number Of Contacts

8

Terminal

Wire Wrap

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Contact Finish Thickness Mating

29.5μin 0.75μm

Contact Material Mating

Beryllium Copper

Pitch Mating

0.100 2.54mm

Insulation Resistance

10000000000Ohm

Pin Sayısı

8

Number Of Positions Or Pins Grid

8 (2 x 4)

Termination Post Length

0.370 9.40mm

Montaj

Through Hole

Body Depth

0.193 inch

Contact Resistance

10mOhm

Contact Finish Mating

Gold

Nem Hassasiyeti (MSL)

1 (Unlimited)

Dielectric Withstanding Voltage

1400VAC V

Contact Finish Post

Tin

Özellikler

Open Frame

RoHS Durumu

ROHS3 Compliant

Terminal Adımı

2.54mm

Contact Material Post

Brass

Yayın Yılı

2012

Seri

122

Ambalaj

Bulk

Body Length Or Diameter

0.397 inch

Lead Length

9.398mm

Fabrika Tedarik Süresi

10 Weeks

Mating Contact Pitch

0.1 inch

Flammability Rating

UL94 V-0

Parça Durumu

Active

Material Flammability Rating

UL94 V-0

Pitch Post

0.100 2.54mm

Pcb Contact Pattern

RECTANGULAR

Tip

DIP, 0.3 (7.62mm) Row Spacing

Pcb Contact Row Spacing

0.2 mm
