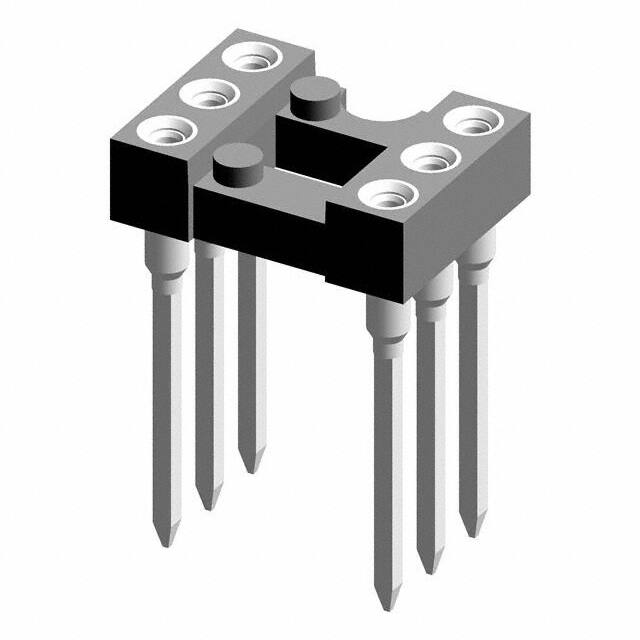

122-83-306-41-001101

Teknik Özellikler

Akım Değeri

1A

Number Of Contacts

6

Çalışma Sıcaklığı

-55°C~125°C

Contact Style

RND PIN-SKT

Montaj Tipi

Through Hole

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Contact Finish Thickness Mating

29.5μin 0.75μm

Terminal

Wire Wrap

Pin Sayısı

6

Number Of Positions Or Pins Grid

6 (2 x 3)

Termination Post Length

0.370 9.40mm

Montaj

Through Hole

Pitch Mating

0.100 2.54mm

Contact Material Mating

Beryllium Copper

Insulation Resistance

10000000000Ohm

Contact Resistance

10mOhm

Contact Finish Mating

Gold

Body Breadth

0.398 inch

Body Depth

0.193 inch

RoHS Durumu

ROHS3 Compliant

Terminal Adımı

2.54mm

Dielectric Withstanding Voltage

1400VAC V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Post

Tin

Özellikler

Open Frame

Seri

122

Ambalaj

Bulk

Contact Material Post

Brass

Yayın Yılı

2012

Material Flammability Rating

UL94 V-0

Body Length Or Diameter

0.297 inch

Fabrika Tedarik Süresi

10 Weeks

Lead Length

9.398mm

Flammability Rating

UL94 V-0

Mating Contact Pitch

0.1 inch

Parça Durumu

Active

Tip

DIP, 0.3 (7.62mm) Row Spacing

Pcb Contact Pattern

RECTANGULAR

Pcb Contact Row Spacing

0.2 mm

Pitch Post

0.100 2.54mm
