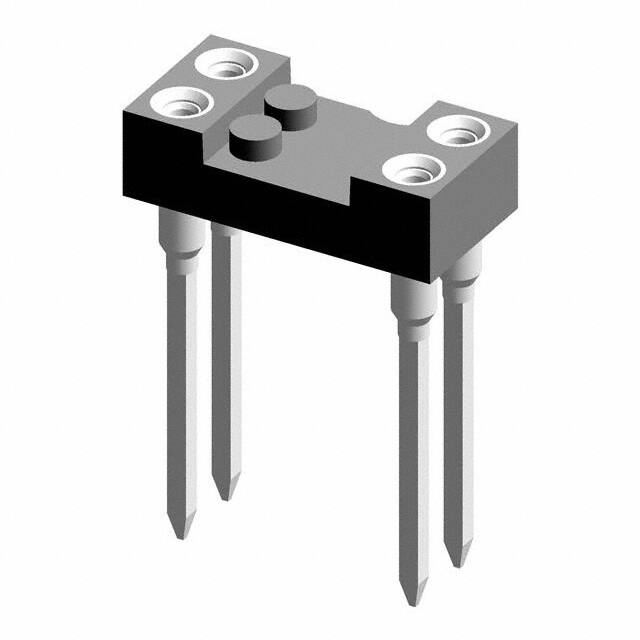

122-83-304-41-001101

Teknik Özellikler

Pcb Contact Row Spacing

0.2 mm

Pcb Contact Pattern

RECTANGULAR

Tip

DIP, 0.3 (7.62mm) Row Spacing

Pitch Post

0.100 2.54mm

Material Flammability Rating

UL94 V-0

Parça Durumu

Active

Flammability Rating

UL94 V-0

Mating Contact Pitch

0.1 inch

Fabrika Tedarik Süresi

10 Weeks

Lead Length

9.398mm

Body Length Or Diameter

0.197 inch

Ambalaj

Bulk

Seri

122

Yayın Yılı

2012

Contact Material Post

Brass

RoHS Durumu

ROHS3 Compliant

Özellikler

Open Frame

Contact Finish Post

Tin

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Mating

Gold

Contact Resistance

10mOhm

Body Breadth

0.398 inch

Body Depth

0.193 inch

Montaj

Through Hole

Termination Post Length

0.370 9.40mm

Number Of Positions Or Pins Grid

4 (2 x 2)

Pin Sayısı

4

Insulation Resistance

10000000000Ohm

Contact Material Mating

Beryllium Copper

Pitch Mating

0.100 2.54mm

Contact Finish Thickness Mating

29.5μin 0.75μm

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Terminal

Wire Wrap

Number Of Contacts

4

Akım Değeri

1A

Montaj Tipi

Through Hole

Contact Style

RND PIN-SKT

Çalışma Sıcaklığı

-55°C~125°C
