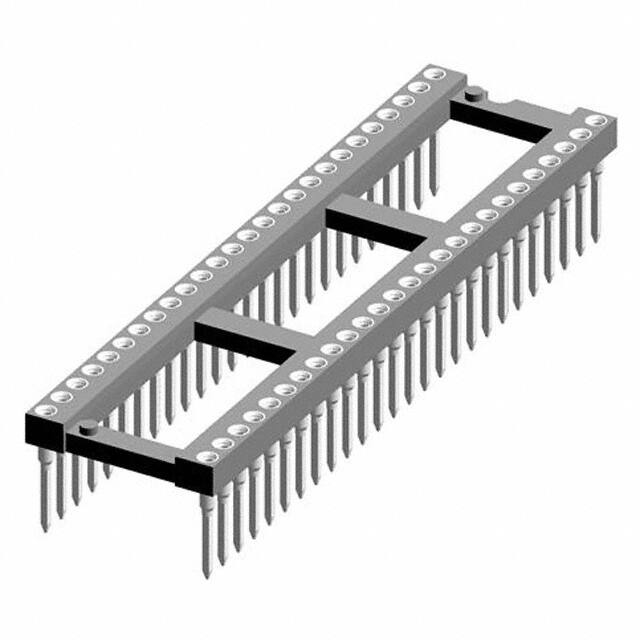

121-83-652-41-001101

Teknik Özellikler

Terminal Adımı

2.54mm

RoHS Durumu

ROHS3 Compliant

Seri

121

Body Breadth

0.697 inch

Pitch Mating

0.100 2.54mm

Body Length Or Diameter

2.597 inch

Mating Contact Pitch

0.1 inch

Termination Post Length

0.260 6.60mm

Parça Durumu

Active

Montaj

Through Hole

Montaj Tipi

Through Hole

Pcb Contact Row Spacing

0.2 mm

Contact Style

RND PIN-SKT

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Resistance

10mOhm

Terminal

Wire Wrap

Pcb Contact Pattern

RECTANGULAR

Tip

DIP, 0.6 (15.24mm) Row Spacing

Özellikler

Open Frame

Çalışma Sıcaklığı

-55°C~125°C

Number Of Contacts

52

Contact Material Mating

Beryllium Copper

Ambalaj

Bulk

Body Depth

0.193 inch

Number Of Positions Or Pins Grid

52 (2 x 26)

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Yayın Yılı

2012

Lead Length

6.604mm

Akım Değeri

1A

Pin Sayısı

52

Contact Material Post

Brass

Fabrika Tedarik Süresi

10 Weeks

Insulation Resistance

10000000000Ohm

Contact Finish Post

Tin

Contact Finish Mating

Gold

Contact Finish Thickness Mating

29.5μin 0.75μm

Material Flammability Rating

UL94 V-0

Pitch Post

0.100 2.54mm

Flammability Rating

UL94 V-0

Dielectric Withstanding Voltage

1400VAC V
