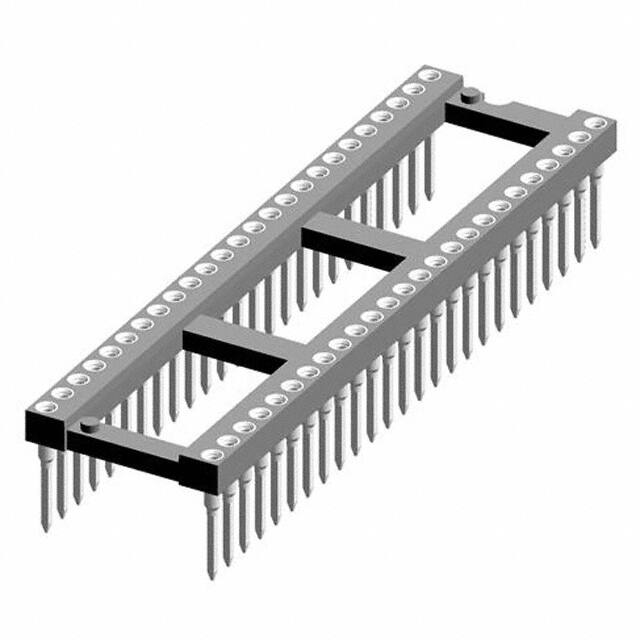

121-83-650-41-001101

Teknik Özellikler

Çalışma Sıcaklığı

-55°C~125°C

Number Of Contacts

50

Contact Material Mating

Beryllium Copper

Ambalaj

Bulk

Number Of Positions Or Pins Grid

50 (2 x 25)

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Body Depth

0.193 inch

Pin Sayısı

50

Contact Material Post

Brass

Fabrika Tedarik Süresi

10 Weeks

Insulation Resistance

10000000000Ohm

Yayın Yılı

2012

Lead Length

6.604mm

Akım Değeri

1A

Pitch Post

0.100 2.54mm

Material Flammability Rating

UL94 V-0

Flammability Rating

UL94 V-0

Dielectric Withstanding Voltage

1400VAC V

Contact Finish Mating

Gold

Contact Finish Post

Tin

Contact Finish Thickness Mating

29.5μin 0.75μm

Seri

121

Body Breadth

0.697 inch

Pitch Mating

0.100 2.54mm

Terminal Adımı

2.54mm

RoHS Durumu

ROHS3 Compliant

Mating Contact Pitch

0.1 inch

Parça Durumu

Active

Termination Post Length

0.260 6.60mm

Body Length Or Diameter

2.497 inch

Montaj Tipi

Through Hole

Pcb Contact Row Spacing

0.2 mm

Contact Style

RND PIN-SKT

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

Wire Wrap

Contact Resistance

10mOhm

Montaj

Through Hole

Tip

DIP, 0.6 (15.24mm) Row Spacing

Özellikler

Open Frame

Pcb Contact Pattern

RECTANGULAR
