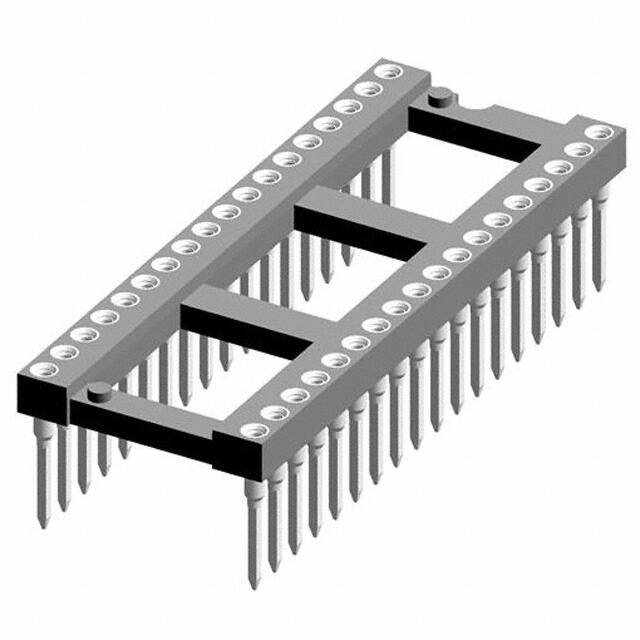

121-83-636-41-001101

Teknik Özellikler

Contact Finish Thickness Mating

29.5μin 0.75μm

Contact Finish Post

Tin

Contact Finish Mating

Gold

Flammability Rating

UL94 V-0

Dielectric Withstanding Voltage

1400VAC V

Material Flammability Rating

UL94 V-0

Pitch Post

0.100 2.54mm

Akım Değeri

1A

Lead Length

6.604mm

Yayın Yılı

2012

Insulation Resistance

10000000000Ohm

Contact Material Post

Brass

Fabrika Tedarik Süresi

10 Weeks

Pin Sayısı

36

Body Depth

0.193 inch

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Number Of Positions Or Pins Grid

36 (2 x 18)

Ambalaj

Bulk

Çalışma Sıcaklığı

-55°C~125°C

Number Of Contacts

36

Contact Material Mating

Beryllium Copper

Pcb Contact Pattern

RECTANGULAR

Özellikler

Open Frame

Tip

DIP, 0.6 (15.24mm) Row Spacing

Montaj

Through Hole

Contact Resistance

10mOhm

Terminal

Wire Wrap

Pcb Contact Row Spacing

0.2 mm

Contact Style

RND PIN-SKT

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Through Hole

Body Length Or Diameter

1.797 inch

Termination Post Length

0.260 6.60mm

Parça Durumu

Active

Mating Contact Pitch

0.1 inch

RoHS Durumu

ROHS3 Compliant

Terminal Adımı

2.54mm

Body Breadth

0.697 inch

Pitch Mating

0.100 2.54mm

Seri

121
