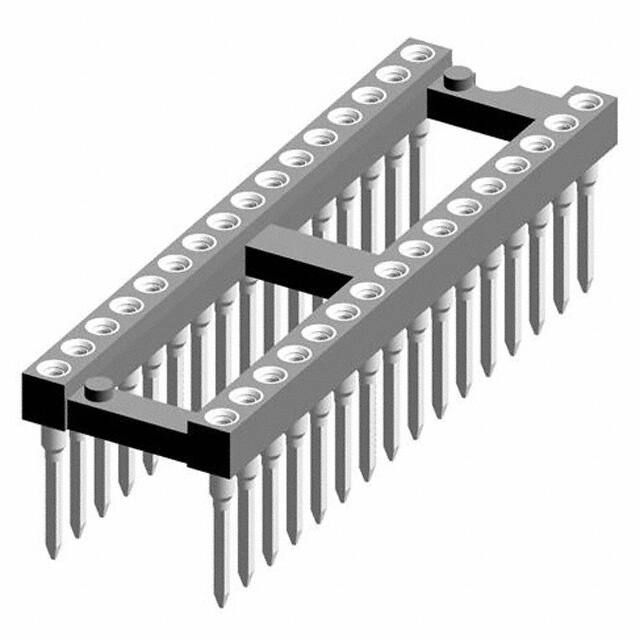

121-83-432-41-001101

Teknik Özellikler

Body Length Or Diameter

1.597 inch

Mating Contact Pitch

0.1 inch

Parça Durumu

Active

Termination Post Length

0.260 6.60mm

RoHS Durumu

ROHS3 Compliant

Terminal Adımı

2.54mm

Seri

121

Pitch Mating

0.100 2.54mm

Body Breadth

0.496 inch

Pcb Contact Pattern

RECTANGULAR

Özellikler

Open Frame

Tip

DIP, 0.4 (10.16mm) Row Spacing

Montaj

Through Hole

Montaj Tipi

Through Hole

Terminal

Wire Wrap

Contact Resistance

10mOhm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Style

RND PIN-SKT

Pcb Contact Row Spacing

0.2 mm

Body Depth

0.193 inch

Number Of Positions Or Pins Grid

32 (2 x 16)

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Contact Material Mating

Beryllium Copper

Number Of Contacts

32

Çalışma Sıcaklığı

-55°C~125°C

Ambalaj

Bulk

Contact Finish Mating

Gold

Contact Finish Post

Tin

Contact Finish Thickness Mating

29.5μin 0.75μm

Pitch Post

0.100 2.54mm

Material Flammability Rating

UL94 V-0

Dielectric Withstanding Voltage

1400VAC V

Flammability Rating

UL94 V-0

Yayın Yılı

2012

Akım Değeri

1A

Lead Length

6.604mm

Fabrika Tedarik Süresi

10 Weeks

Contact Material Post

Brass

Pin Sayısı

32

Insulation Resistance

10000000000Ohm
