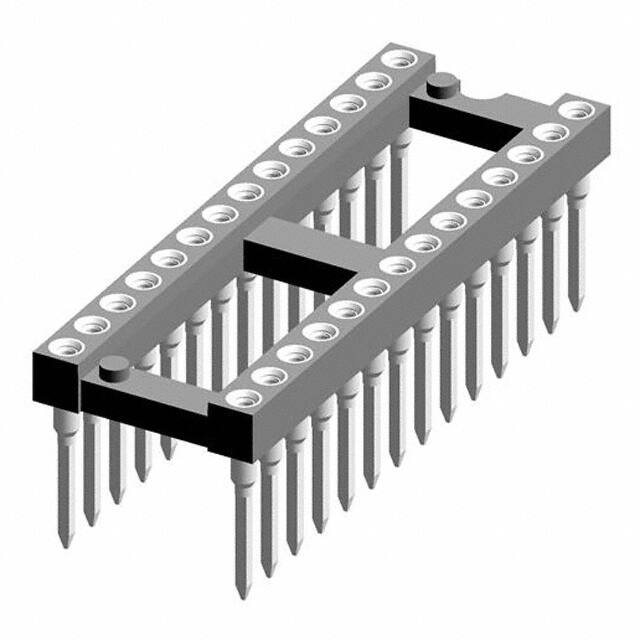

121-83-428-41-001101

Teknik Özellikler

Yayın Yılı

2012

Akım Değeri

1A

Lead Length

6.604mm

Fabrika Tedarik Süresi

10 Weeks

Contact Material Post

Brass

Pin Sayısı

28

Insulation Resistance

10000000000Ohm

Contact Finish Post

Tin

Contact Finish Mating

Gold

Contact Finish Thickness Mating

29.5μin 0.75μm

Material Flammability Rating

UL94 V-0

Pitch Post

0.100 2.54mm

Dielectric Withstanding Voltage

1400VAC V

Flammability Rating

UL94 V-0

Contact Material Mating

Beryllium Copper

Number Of Contacts

28

Çalışma Sıcaklığı

-55°C~125°C

Ambalaj

Bulk

Body Depth

0.193 inch

Number Of Positions Or Pins Grid

28 (2 x 14)

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Montaj

Through Hole

Montaj Tipi

Through Hole

Contact Resistance

10mOhm

Terminal

Wire Wrap

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Style

RND PIN-SKT

Pcb Contact Row Spacing

0.2 mm

Pcb Contact Pattern

RECTANGULAR

Özellikler

Open Frame

Tip

DIP, 0.4 (10.16mm) Row Spacing

RoHS Durumu

ROHS3 Compliant

Terminal Adımı

2.54mm

Seri

121

Pitch Mating

0.100 2.54mm

Body Breadth

0.496 inch

Body Length Or Diameter

1.397 inch

Mating Contact Pitch

0.1 inch

Termination Post Length

0.260 6.60mm

Parça Durumu

Active
