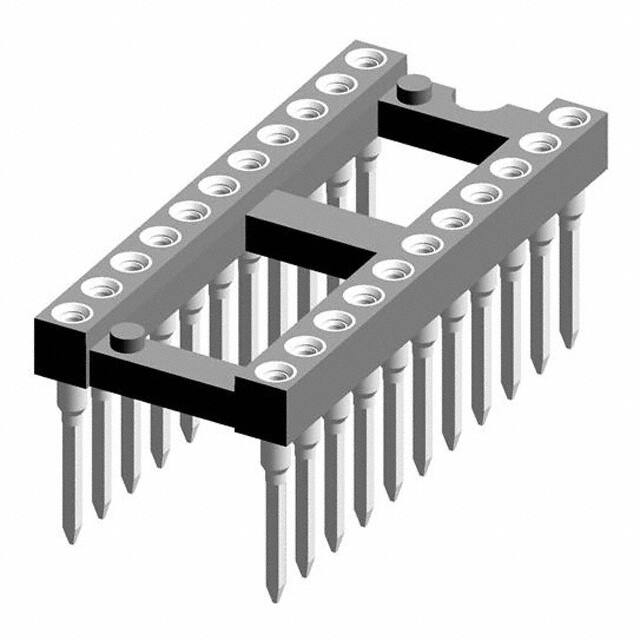

121-83-422-41-001101

Teknik Özellikler

Montaj Tipi

Through Hole

Terminal

Wire Wrap

Contact Resistance

10mOhm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Style

RND PIN-SKT

Pcb Contact Row Spacing

0.2 mm

Montaj

Through Hole

Özellikler

Open Frame

Tip

DIP, 0.4 (10.16mm) Row Spacing

Pcb Contact Pattern

RECTANGULAR

Seri

121

Pitch Mating

0.100 2.54mm

Body Breadth

0.496 inch

RoHS Durumu

ROHS3 Compliant

Terminal Adımı

2.54mm

Mating Contact Pitch

0.1 inch

Termination Post Length

0.260 6.60mm

Parça Durumu

Active

Body Length Or Diameter

1.097 inch

Fabrika Tedarik Süresi

10 Weeks

Contact Material Post

Brass

Pin Sayısı

22

Insulation Resistance

10000000000Ohm

Yayın Yılı

2012

Akım Değeri

1A

Lead Length

6.604mm

Material Flammability Rating

UL94 V-0

Pitch Post

0.100 2.54mm

Flammability Rating

UL94 V-0

Dielectric Withstanding Voltage

1400VAC V

Contact Finish Mating

Gold

Contact Finish Post

Tin

Contact Finish Thickness Mating

29.5μin 0.75μm

Contact Material Mating

Beryllium Copper

Number Of Contacts

22

Çalışma Sıcaklığı

-55°C~125°C

Ambalaj

Bulk

Number Of Positions Or Pins Grid

22 (2 x 11)

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Body Depth

0.193 inch
