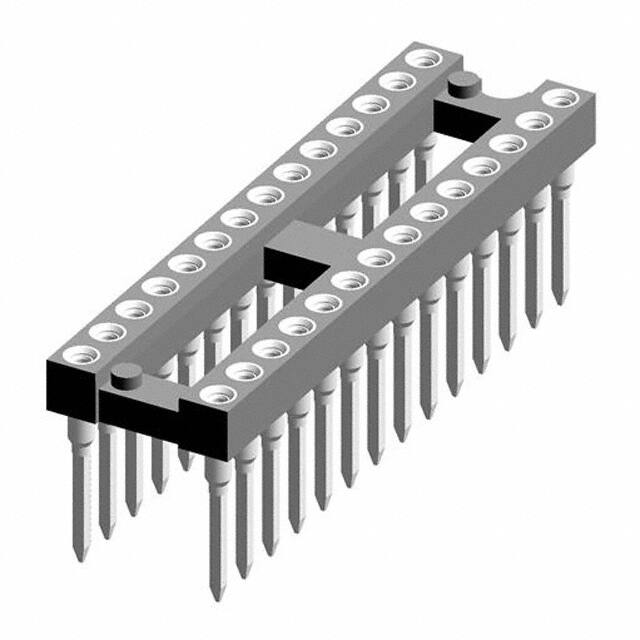

121-83-328-41-001101

Teknik Özellikler

Ambalaj

Bulk

Contact Material Mating

Beryllium Copper

Number Of Contacts

28

Çalışma Sıcaklığı

-55°C~125°C

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Number Of Positions Or Pins Grid

28 (2 x 14)

Body Depth

0.193 inch

Insulation Resistance

10000000000Ohm

Pin Sayısı

28

Fabrika Tedarik Süresi

10 Weeks

Contact Material Post

Brass

Lead Length

6.604mm

Akım Değeri

1A

Yayın Yılı

2012

Flammability Rating

UL94 V-0

Dielectric Withstanding Voltage

1400VAC V

Material Flammability Rating

UL94 V-0

Pitch Post

0.100 2.54mm

Contact Finish Thickness Mating

29.5μin 0.75μm

Contact Finish Mating

Gold

Contact Finish Post

Tin

Pitch Mating

0.100 2.54mm

Body Breadth

0.398 inch

Seri

121

Terminal Adımı

2.54mm

RoHS Durumu

ROHS3 Compliant

Parça Durumu

Active

Termination Post Length

0.260 6.60mm

Mating Contact Pitch

0.1 inch

Body Length Or Diameter

1.397 inch

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Style

RND PIN-SKT

Pcb Contact Row Spacing

0.2 mm

Terminal

Wire Wrap

Contact Resistance

10mOhm

Montaj Tipi

Through Hole

Montaj

Through Hole

Tip

DIP, 0.3 (7.62mm) Row Spacing

Özellikler

Open Frame

Pcb Contact Pattern

RECTANGULAR
