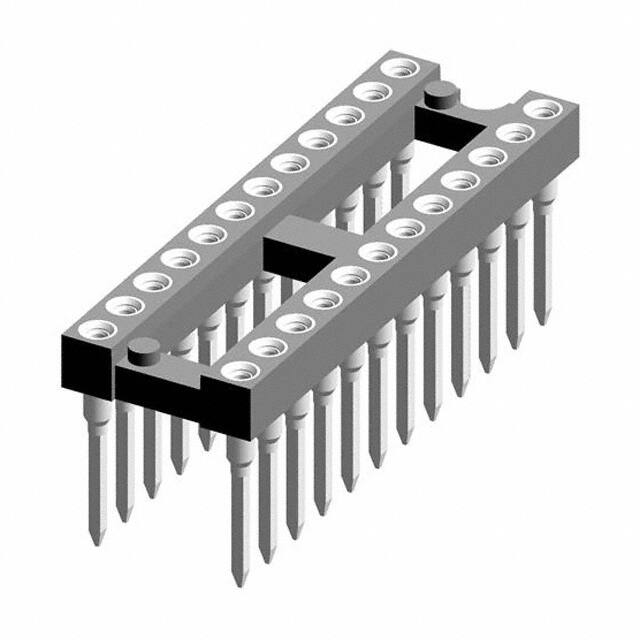

121-83-324-41-001101

Teknik Özellikler

ECCN Kodu

EAR99

Montaj

Through Hole

Pcb Contact Row Spacing

0.2 mm

Contact Style

RND PIN-SKT

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Resistance

10mOhm

Terminal

Wire Wrap

HTS Kodu

8536.69.40.40

Montaj Tipi

Through Hole

Pcb Contact Pattern

RECTANGULAR

Tip

DIP, 0.3 (7.62mm) Row Spacing

Özellikler

Open Frame

Terminal Adımı

2.54mm

RoHS Durumu

ROHS3 Compliant

Pitch Mating

0.100 2.54mm

Body Breadth

0.398 inch

Seri

121

Body Length Or Diameter

1.197 inch

Parça Durumu

Active

Termination Post Length

0.260 6.60mm

Mating Contact Pitch

0.1 inch

Lead Length

6.604mm

Akım Değeri

1A

Yayın Yılı

2012

Insulation Resistance

10000000000Ohm

Pin Sayısı

24

Fabrika Tedarik Süresi

10 Weeks

Contact Material Post

Brass

Contact Finish Thickness Mating

29.5μin 0.75μm

Contact Finish Post

Tin

Contact Finish Mating

Gold

Dielectric Withstanding Voltage

1400VAC V

Flammability Rating

UL94 V-0

Pitch Post

0.100 2.54mm

Material Flammability Rating

UL94 V-0

Ambalaj

Bulk

Contact Material Mating

Beryllium Copper

Çalışma Sıcaklığı

-55°C~125°C

Number Of Contacts

24

Body Depth

0.193 inch
