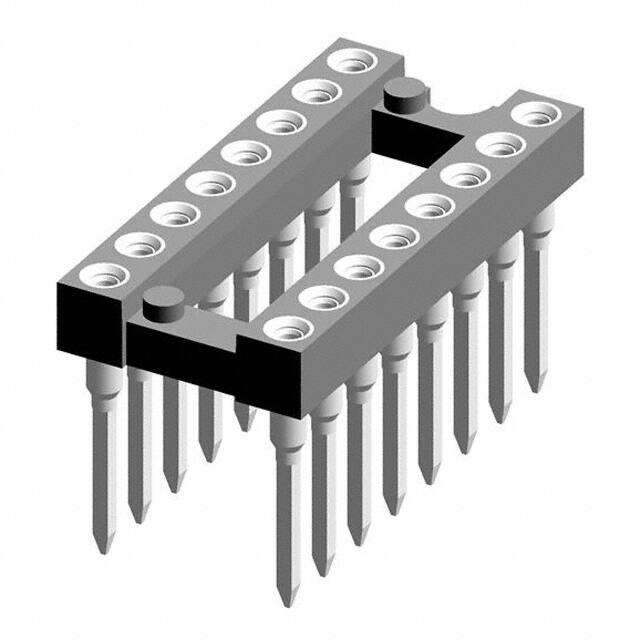

121-83-316-41-001101

Teknik Özellikler

Terminal Adımı

2.54mm

RoHS Durumu

ROHS3 Compliant

Body Breadth

0.398 inch

Pitch Mating

0.100 2.54mm

Seri

121

Body Length Or Diameter

0.797 inch

Termination Post Length

0.260 6.60mm

Parça Durumu

Active

Mating Contact Pitch

0.1 inch

ECCN Kodu

EAR99

Montaj

Through Hole

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Style

RND PIN-SKT

Pcb Contact Row Spacing

0.2 mm

Terminal

Wire Wrap

Contact Resistance

10mOhm

HTS Kodu

8536.69.40.40

Montaj Tipi

Through Hole

Pcb Contact Pattern

RECTANGULAR

Tip

DIP, 0.3 (7.62mm) Row Spacing

Özellikler

Open Frame

Ambalaj

Bulk

Contact Material Mating

Beryllium Copper

Çalışma Sıcaklığı

-55°C~125°C

Number Of Contacts

16

Body Depth

0.193 inch

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Number Of Positions Or Pins Grid

16 (2 x 8)

Lead Length

6.604mm

Akım Değeri

1A

Yayın Yılı

2012

Insulation Resistance

10000000000Ohm

Pin Sayısı

16

Fabrika Tedarik Süresi

10 Weeks

Contact Material Post

Brass

Contact Finish Thickness Mating

29.5μin 0.75μm

Contact Finish Mating

Gold

Contact Finish Post

Tin

Flammability Rating

UL94 V-0

Dielectric Withstanding Voltage

1400VAC V
