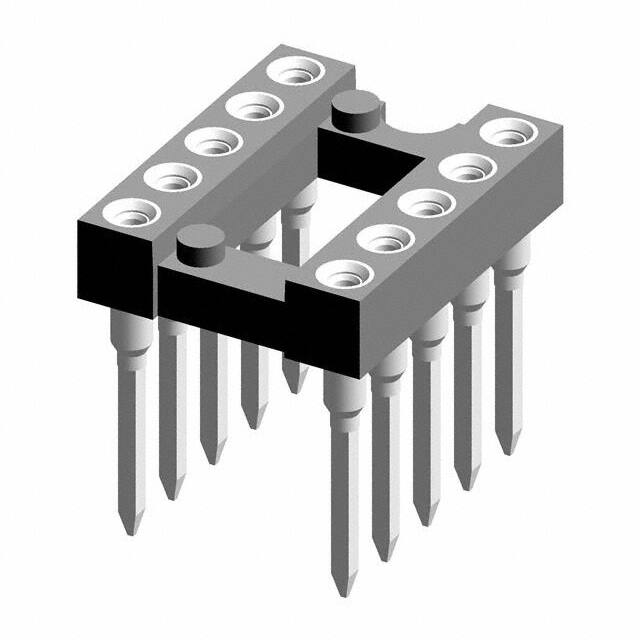

121-83-310-41-001101

Teknik Özellikler

Tip

DIP, 0.3 (7.62mm) Row Spacing

Özellikler

Open Frame

Pcb Contact Pattern

RECTANGULAR

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Style

RND PIN-SKT

Pcb Contact Row Spacing

0.2 mm

Contact Resistance

10mOhm

Terminal

Wire Wrap

Montaj Tipi

Through Hole

Montaj

Through Hole

Termination Post Length

0.260 6.60mm

Parça Durumu

Active

Mating Contact Pitch

0.1 inch

Body Length Or Diameter

0.497 inch

Body Breadth

0.398 inch

Pitch Mating

0.100 2.54mm

Seri

121

Terminal Adımı

2.54mm

RoHS Durumu

ROHS3 Compliant

Flammability Rating

UL94 V-0

Dielectric Withstanding Voltage

1400VAC V

Material Flammability Rating

UL94 V-0

Pitch Post

0.100 2.54mm

Contact Finish Thickness Mating

29.5μin 0.75μm

Contact Finish Mating

Gold

Contact Finish Post

Tin

Pin Sayısı

10

Fabrika Tedarik Süresi

10 Weeks

Contact Material Post

Brass

Lead Length

6.604mm

Akım Değeri

1A

Yayın Yılı

2012

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Number Of Positions Or Pins Grid

10 (2 x 5)

Body Depth

0.193 inch

Ambalaj

Bulk

Çalışma Sıcaklığı

-55°C~125°C

Number Of Contacts

10

Contact Material Mating

Beryllium Copper
