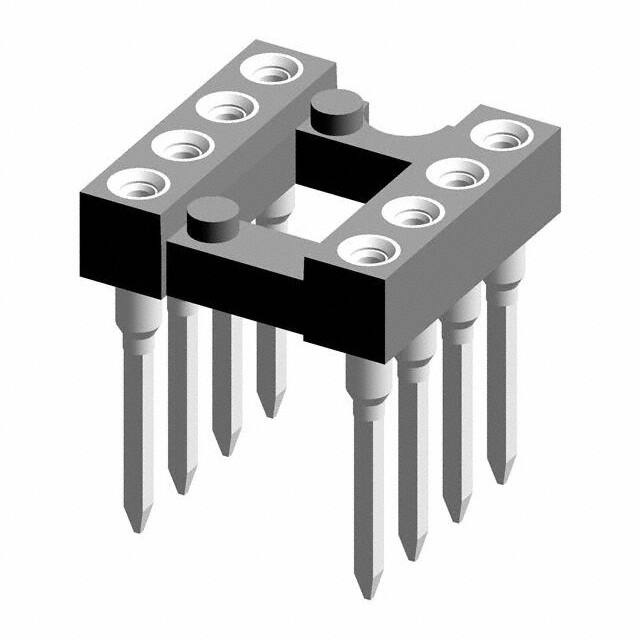

121-83-308-41-001101

Teknik Özellikler

Mating Contact Pitch

0.1 inch

Parça Durumu

Active

Insulation Materials

Polyester

Termination Post Length

0.260 6.60mm

RoHS Durumu

ROHS3 Compliant

Seri

121

Pitch Mating

0.100 2.54mm

Pcb Contact Pattern

RECTANGULAR

Özellikler

Open Frame

Tip

DIP, 0.3 (7.62mm) Row Spacing

Radyasyon Dayanımı

No

Montaj

Cable, Through Hole

ECCN Kodu

EAR99

Montaj Tipi

Through Hole

Depth

10.1mm

Contact Materials

Copper

Contact Resistance

10mOhm

Terminal

Wire Wrap

Contact Style

RND PIN-SKT

Nem Hassasiyeti (MSL)

1 (Unlimited)

Sıra Sayısı

2

Voltage Rated Ac

100V

Uzunluk

10.1mm

Number Of Positions Or Pins Grid

8 (2 x 4)

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Çalışma Sıcaklığı

-55°C~125°C

Number Of Contacts

8

Contact Material Mating

Beryllium Copper

Ambalaj

Bulk

Contact Finish Post

Tin

Contact Finish Mating

Gold

Row Spacing

7.62 mm

Voltage Rated Dc

150V

Contact Finish Thickness Mating

29.5μin 0.75μm

Material Flammability Rating

UL94 V-0

Pitch Post

0.100 2.54mm

Flammability Rating

UL94 V-0

Dielectric Withstanding Voltage

1400VAC V

Yayın Yılı

2012

Akım Değeri

1A
