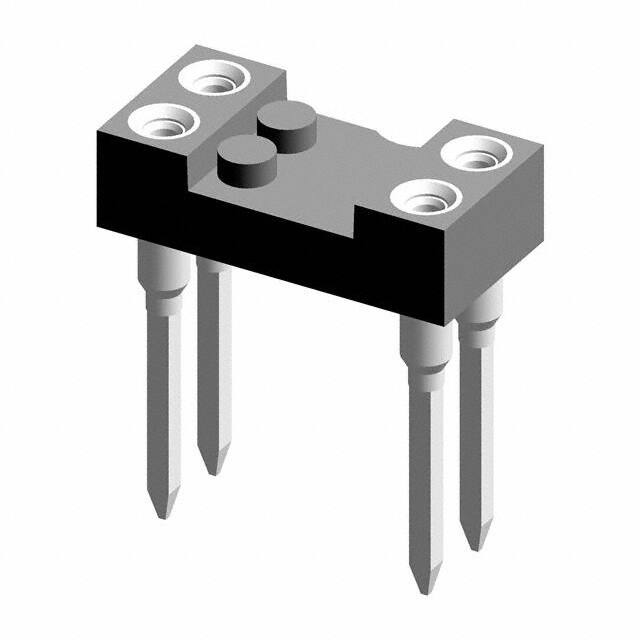

121-83-304-41-001101

Teknik Özellikler

Özellikler

Open Frame

Tip

DIP, 0.3 (7.62mm) Row Spacing

Pcb Contact Pattern

RECTANGULAR

Contact Resistance

10mOhm

Terminal

Wire Wrap

Pcb Contact Row Spacing

0.2 mm

Contact Style

RND PIN-SKT

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Through Hole

Montaj

Through Hole

Termination Post Length

0.260 6.60mm

Parça Durumu

Active

Mating Contact Pitch

0.1 inch

Body Length Or Diameter

0.197 inch

Body Breadth

0.398 inch

Pitch Mating

0.100 2.54mm

Seri

121

RoHS Durumu

ROHS3 Compliant

Flammability Rating

UL94 V-0

Material Flammability Rating

UL94 V-0

Pitch Post

0.100 2.54mm

Contact Finish Thickness Mating

29.5μin 0.75μm

Contact Finish Mating

Gold

Contact Finish Post

Tin

Insulation Resistance

10000000000Ohm

Contact Material Post

Brass

Fabrika Tedarik Süresi

10 Weeks

Pin Sayısı

4

Akım Değeri

1A

Lead Length

6.604mm

Yayın Yılı

2012

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Number Of Positions Or Pins Grid

4 (2 x 2)

Body Depth

0.193 inch

Ambalaj

Bulk

Çalışma Sıcaklığı

-55°C~125°C

Number Of Contacts

4

Contact Material Mating

Beryllium Copper
