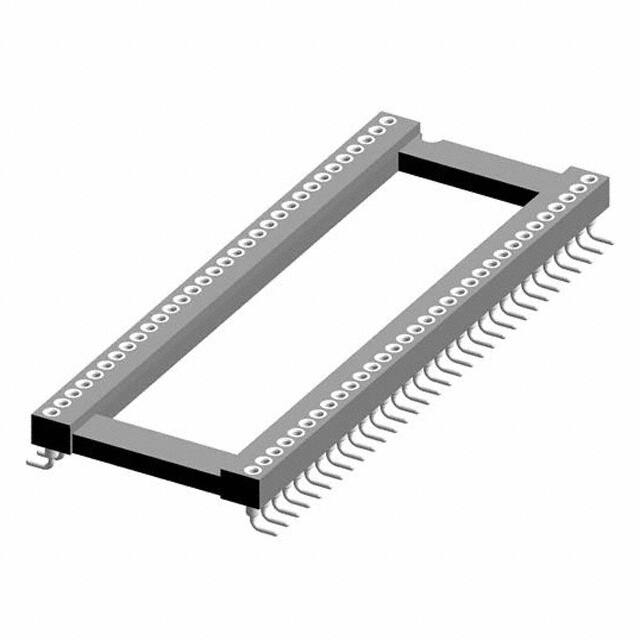

117-87-764-41-105101

Teknik Özellikler

Contact Material Post

Brass

Lead Length

3.175mm

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Number Of Positions Or Pins Grid

64 (2 x 32)

Parça Durumu

Active

Contact Finish Post

Tin

Contact Finish Thickness Mating

Flash

RoHS Durumu

ROHS3 Compliant

Termination Post Length

0.125 3.18mm

Contact Finish Mating

Gold

Fabrika Tedarik Süresi

10 Weeks

Montaj

Through Hole

Özellikler

Open Frame

Yayın Yılı

2012

Pitch Mating

0.070 1.78mm

Ambalaj

Bulk

Flammability Rating

UL94 V-0

Akım Değeri

1A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Material Mating

Beryllium Copper

Çalışma Sıcaklığı

-55°C~125°C

Material Flammability Rating

UL94 V-0

Terminal

Solder

Tip

DIP, 0.75 (19.05mm) Row Spacing

Montaj Tipi

Through Hole

Pitch Post

0.070 1.78mm

Contact Resistance

10mOhm

Pin Sayısı

64

Seri

117
