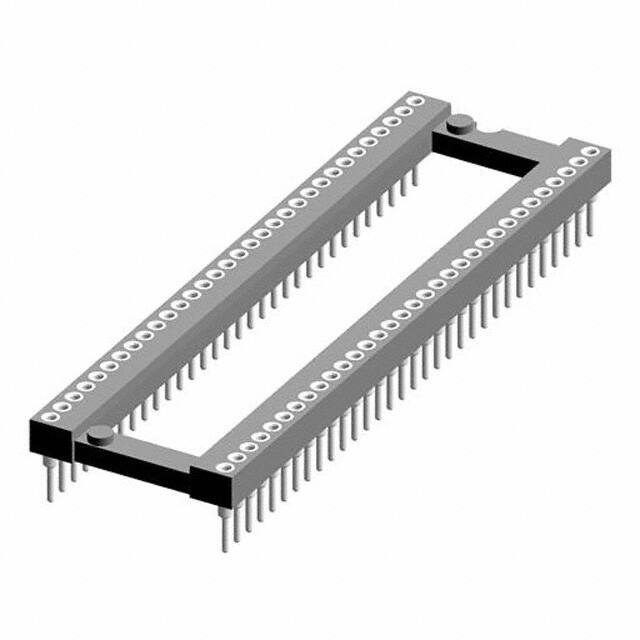

117-87-664-41-005101

Teknik Özellikler

Fabrika Tedarik Süresi

10 Weeks

Contact Finish Mating

Gold

Termination Post Length

0.125 3.18mm

Montaj

Through Hole

Contact Finish Thickness Mating

Flash

Parça Durumu

Active

Contact Finish Post

Tin

RoHS Durumu

ROHS3 Compliant

Pcb Contact Row Spacing

0.6 mm

Body Depth

0.165 inch

Yayın Yılı

2012

Pitch Mating

0.070 1.78mm

Özellikler

Open Frame

Ambalaj

Bulk

Flammability Rating

UL94 V-0

Lead Length

3.175mm

Insulation Resistance

10000000000Ohm

Terminal Adımı

1.778mm

HTS Kodu

8536.69.40.40

Contact Material Post

Brass

Number Of Positions Or Pins Grid

64 (2 x 32)

Pcb Contact Pattern

RECTANGULAR

Radyasyon Dayanımı

No

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Number Of Contacts

64

Dielectric Withstanding Voltage

1400VAC V

Contact Resistance

10mOhm

ECCN Kodu

EAR99

Pitch Post

0.070 1.78mm

Seri

117

Body Breadth

0.694 inch

Sıra Sayısı

2

Çalışma Sıcaklığı

-55°C~125°C

Akım Değeri

1A

Contact Style

RND PIN-SKT

Contact Material Mating

Beryllium Copper

Nem Hassasiyeti (MSL)

1 (Unlimited)

Orientation

Straight

Terminal

Solder

Tip

DIP, 0.6 (15.24mm) Row Spacing
