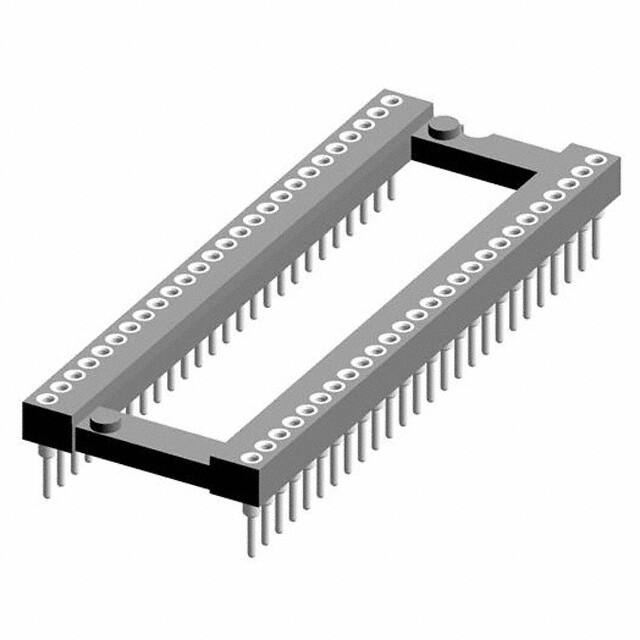

117-87-652-41-005101

Teknik Özellikler

Contact Resistance

10mOhm

Pitch Post

0.070 1.78mm

ECCN Kodu

EAR99

Body Length Or Diameter

1.839 inch

Seri

117

Body Breadth

0.694 inch

Sıra Sayısı

2

Çalışma Sıcaklığı

-55°C~125°C

Contact Style

RND PIN-SKT

Akım Değeri

1A

Orientation

Straight

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Material Mating

Beryllium Copper

Tip

DIP, 0.6 (15.24mm) Row Spacing

Terminal

Solder

Montaj Tipi

Through Hole

Mating Contact Pitch

0.07 inch

Material Flammability Rating

UL94 V-0

Contact Finish Mating

Gold

Termination Post Length

0.125 3.18mm

Fabrika Tedarik Süresi

10 Weeks

Montaj

Through Hole

Parça Durumu

Active

Contact Finish Post

Tin

Contact Finish Thickness Mating

Flash

RoHS Durumu

ROHS3 Compliant

Pcb Contact Row Spacing

0.6 mm

Özellikler

Open Frame

Pitch Mating

0.070 1.78mm

Yayın Yılı

2012

Body Depth

0.165 inch

Flammability Rating

UL94 V-0

Ambalaj

Bulk

Lead Length

3.175mm

Terminal Adımı

1.778mm

Insulation Resistance

10000000000Ohm

Contact Material Post

Brass

HTS Kodu

8536.69.40.40

Number Of Positions Or Pins Grid

52 (2 x 26)

Pcb Contact Pattern

RECTANGULAR
