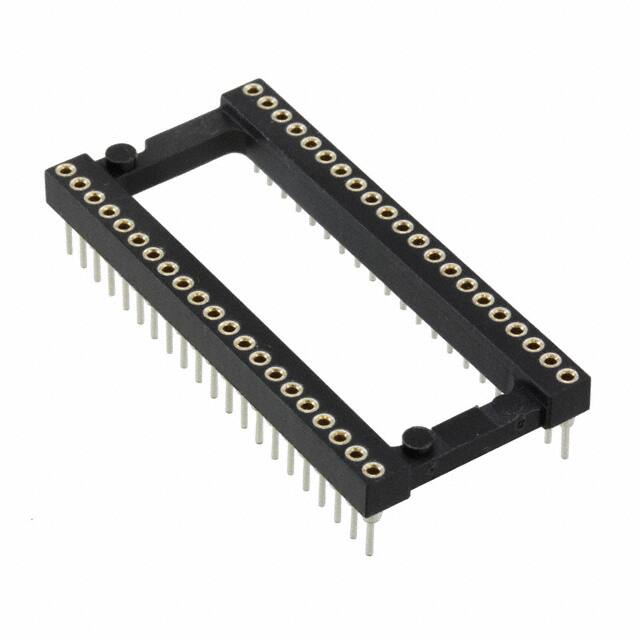

117-87-642-41-005101

Teknik Özellikler

Number Of Positions Or Pins Grid

42 (2 x 21)

Pcb Contact Pattern

RECTANGULAR

Number Of Contacts

42

Gender

Female

Radyasyon Dayanımı

No

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Dielectric Withstanding Voltage

1400VAC V

Terminal Adımı

1.778mm

Insulation Resistance

10GOhm

Contact Material Post

Brass

HTS Kodu

8536.69.40.40

Depth

17.64mm

Özellikler

Open Frame

Yayın Yılı

2012

Pitch Mating

0.070 1.78mm

Uzunluk

37.7mm

Ambalaj

Tube

Termination Post Length

0.125 3.18mm

Contact Finish Mating

Gold

Fabrika Tedarik Süresi

12 Weeks

Montaj

Through Hole

Contact Finish Post

Tin

Parça Durumu

Active

Contact Finish Thickness Mating

Flash

RoHS Durumu

ROHS3 Compliant

Tip

DIP, 0.6 (15.24mm) Row Spacing

Terminal

Solder

Montaj Tipi

Through Hole

Mating Contact Pitch

0.07 inch

Material Flammability Rating

UL94 V-0

Voltage Rated Ac

100V

Sıra Sayısı

2

Çalışma Sıcaklığı

-55°C~125°C

Voltage Rated Dc

150V

Akım Değeri

1A

Insulation Materials

Polychlorinated

Contact Style

RND PIN-SKT

Orientation

Straight

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Material Mating

Beryllium Copper
