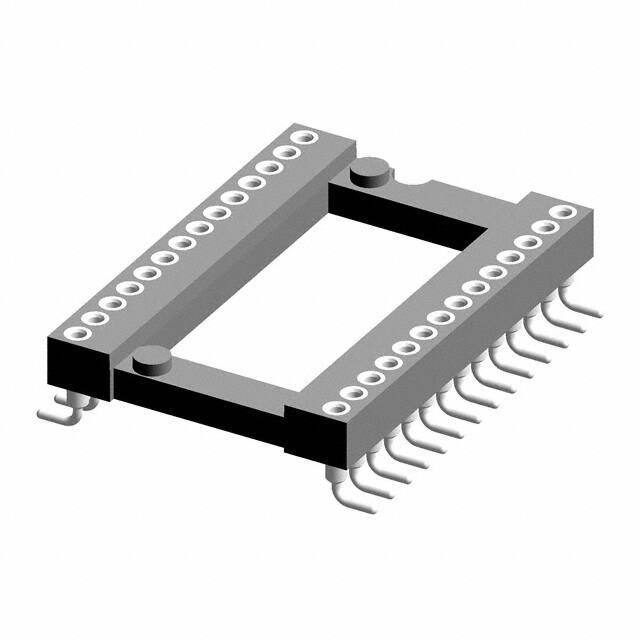

117-87-628-41-105101

Teknik Özellikler

Material Flammability Rating

UL94 V-0

Tip

DIP, 0.6 (15.24mm) Row Spacing

Terminal

Solder

Mating Contact Pitch

0.07 inch

Montaj Tipi

Through Hole

Akım Değeri

1A

Contact Style

RND PIN-SKT

Contact Material Mating

Beryllium Copper

Nem Hassasiyeti (MSL)

1 (Unlimited)

Çalışma Sıcaklığı

-55°C~125°C

Seri

117

Body Breadth

0.694 inch

Body Length Or Diameter

0.992 inch

Pitch Post

0.070 1.78mm

REACH Uyumluluk Kodu

unknown

Pin Sayısı

28

Contact Resistance

10mOhm

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Number Of Contacts

28

Dielectric Withstanding Voltage

1400VAC V

Number Of Positions Or Pins Grid

28 (2 x 14)

Insulation Resistance

10000000000Ohm

Contact Material Post

Brass

Lead Length

3.175mm

Body Depth

0.22 inch

Yayın Yılı

2012

Pitch Mating

0.070 1.78mm

Özellikler

Open Frame

Ambalaj

Bulk

Flammability Rating

UL94 V-0

Contact Finish Thickness Mating

Flash

Contact Finish Post

Tin

Parça Durumu

Active

RoHS Durumu

ROHS3 Compliant

Fabrika Tedarik Süresi

10 Weeks

Contact Finish Mating

Gold

Termination Post Length

0.125 3.18mm

Montaj

Through Hole
