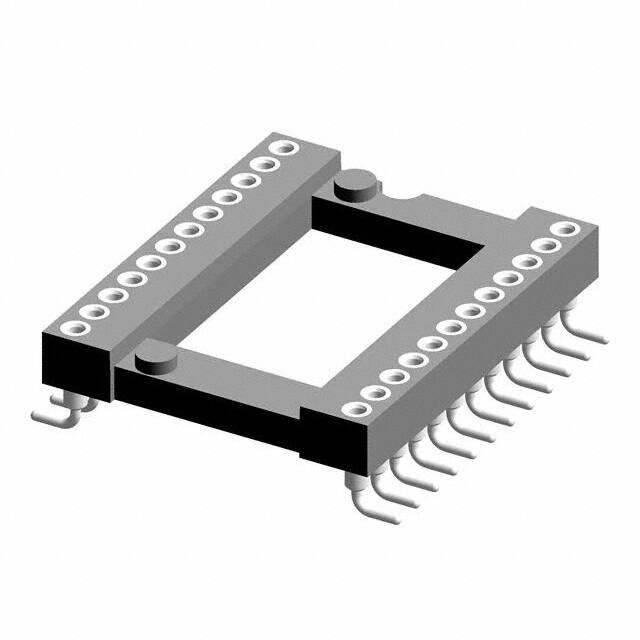

117-87-624-41-105101

Teknik Özellikler

Çalışma Sıcaklığı

-55°C~125°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Material Mating

Beryllium Copper

Akım Değeri

1A

Contact Style

RND PIN-SKT

Montaj Tipi

Through Hole

Mating Contact Pitch

0.07 inch

Terminal

Solder

Tip

DIP, 0.6 (15.24mm) Row Spacing

Material Flammability Rating

UL94 V-0

Contact Resistance

10mOhm

Pin Sayısı

24

Pitch Post

0.070 1.78mm

Body Length Or Diameter

0.854 inch

Body Breadth

0.694 inch

Seri

117

Lead Length

3.175mm

Contact Material Post

Brass

Insulation Resistance

10000000000Ohm

Number Of Positions Or Pins Grid

24 (2 x 12)

Dielectric Withstanding Voltage

1400VAC V

Number Of Contacts

24

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Montaj

Through Hole

Contact Finish Mating

Gold

Termination Post Length

0.125 3.18mm

Fabrika Tedarik Süresi

10 Weeks

RoHS Durumu

ROHS3 Compliant

Parça Durumu

Active

Contact Finish Post

Tin

Contact Finish Thickness Mating

Flash

Flammability Rating

UL94 V-0

Ambalaj

Bulk

Özellikler

Open Frame

Pitch Mating

0.070 1.78mm

Yayın Yılı

2012

Body Depth

0.22 inch
