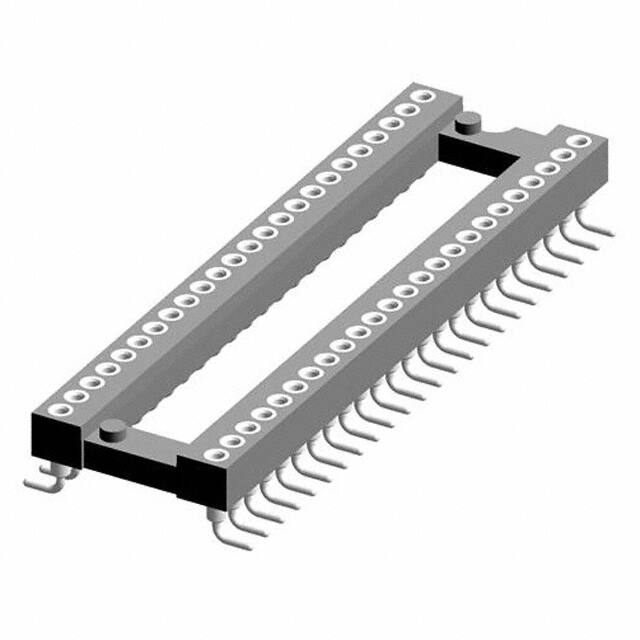

117-87-448-41-105101

Teknik Özellikler

Body Length Or Diameter

1.697 inch

Seri

117

Body Breadth

0.5 inch

Contact Resistance

10mOhm

Pin Sayısı

48

Pitch Post

0.070 1.78mm

Terminal

Solder

Tip

DIP, 0.4 (10.16mm) Row Spacing

Montaj Tipi

Through Hole

Mating Contact Pitch

0.07 inch

Material Flammability Rating

UL94 V-0

Çalışma Sıcaklığı

-55°C~125°C

Contact Style

RND PIN-SKT

Akım Değeri

1A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Material Mating

Beryllium Copper

Özellikler

Open Frame

Pitch Mating

0.070 1.78mm

Yayın Yılı

2012

Body Depth

0.22 inch

Flammability Rating

UL94 V-0

Ambalaj

Bulk

Contact Finish Mating

Gold

Termination Post Length

0.125 3.18mm

Fabrika Tedarik Süresi

10 Weeks

Montaj

Through Hole

Parça Durumu

Active

Contact Finish Post

Tin

Contact Finish Thickness Mating

Flash

RoHS Durumu

ROHS3 Compliant

Number Of Positions Or Pins Grid

48 (2 x 24)

Number Of Contacts

48

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Dielectric Withstanding Voltage

1400VAC V

Lead Length

3.175mm

Insulation Resistance

10000000000Ohm

Contact Material Post

Brass
