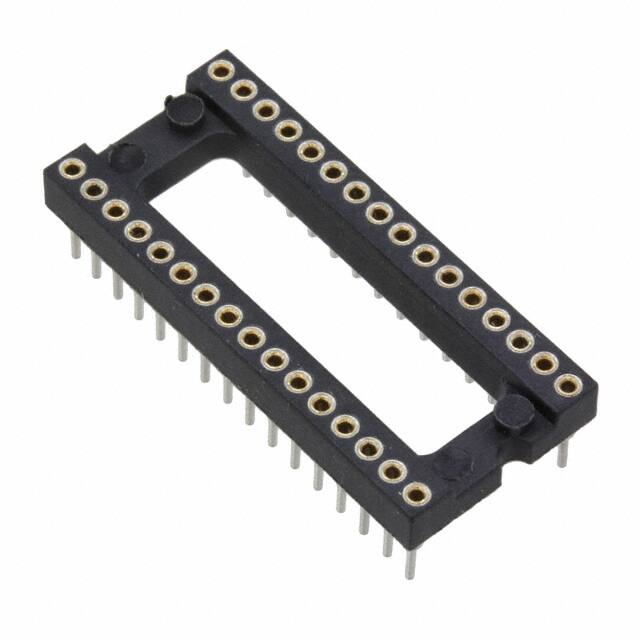

117-87-432-41-005101

Teknik Özellikler

Montaj Tipi

Through Hole

Mating Contact Pitch

0.07 inch

Tip

DIP, 0.4 (10.16mm) Row Spacing

Terminal

Solder

Voltage Rated Ac

100V

Material Flammability Rating

UL94 V-0

Çalışma Sıcaklığı

-55°C~125°C

Sıra Sayısı

2

Orientation

Straight

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Material Mating

Beryllium Copper

Voltage Rated Dc

150V

Akım Değeri

1A

Insulation Materials

Polychlorinated

Contact Style

RND PIN-SKT

Body Breadth

0.5 inch

Seri

117

Contact Resistance

10mOhm

Contact Materials

Copper

Row Spacing

10.16 mm

ECCN Kodu

EAR99

Pitch Post

0.070 1.78mm

Pcb Contact Pattern

RECTANGULAR

Number Of Positions Or Pins Grid

32 (2 x 16)

Dielectric Withstanding Voltage

1400VAC V

Number Of Contacts

32

Gender

Female

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Radyasyon Dayanımı

No

Contact Material Post

Brass

HTS Kodu

8536.69.40.40

Terminal Adımı

1.778mm

Insulation Resistance

10GOhm

Depth

12.7mm

Ambalaj

Tube

Uzunluk

28.8mm

Özellikler

Open Frame

Yayın Yılı

2012

Pitch Mating

0.070 1.78mm

Montaj

Through Hole
