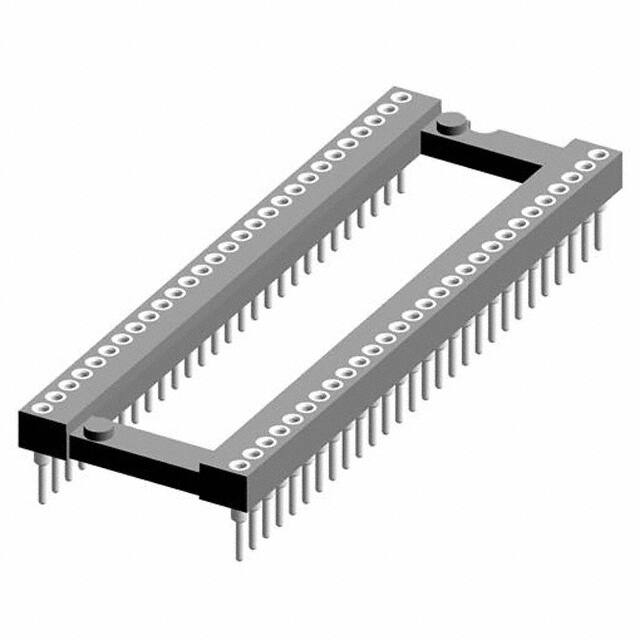

117-83-656-41-005101

Teknik Özellikler

Material Flammability Rating

UL94 V-0

Mating Contact Pitch

0.07 inch

Montaj Tipi

Through Hole

Tip

DIP, 0.6 (15.24mm) Row Spacing

Terminal

Solder

Contact Material Mating

Beryllium Copper

Orientation

Straight

Nem Hassasiyeti (MSL)

1 (Unlimited)

Akım Değeri

1A

Contact Style

RND PIN-SKT

Çalışma Sıcaklığı

-55°C~125°C

Sıra Sayısı

2

Body Breadth

0.694 inch

Seri

117

Body Length Or Diameter

1.976 inch

ECCN Kodu

EAR99

Pitch Post

0.070 1.78mm

Contact Resistance

10mOhm

Dielectric Withstanding Voltage

1400VAC V

Radyasyon Dayanımı

No

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Number Of Contacts

56

Pcb Contact Pattern

RECTANGULAR

Number Of Positions Or Pins Grid

56 (2 x 28)

HTS Kodu

8536.69.40.40

Contact Material Post

Brass

Insulation Resistance

10000000000Ohm

Terminal Adımı

1.778mm

Lead Length

3.175mm

Flammability Rating

UL94 V-0

Ambalaj

Bulk

Body Depth

0.165 inch

Yayın Yılı

2012

Pitch Mating

0.070 1.78mm

Özellikler

Open Frame

Pcb Contact Row Spacing

0.6 mm

RoHS Durumu

ROHS3 Compliant

Contact Finish Thickness Mating

29.5μin 0.75μm

Contact Finish Post

Tin

Parça Durumu

Active
