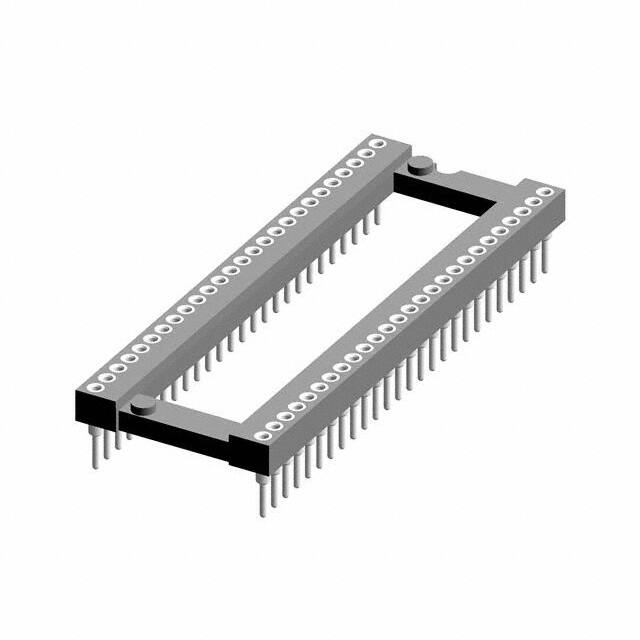

117-83-652-41-005101

Teknik Özellikler

Material Flammability Rating

UL94 V-0

Tip

DIP, 0.6 (15.24mm) Row Spacing

Terminal

Solder

Montaj Tipi

Through Hole

Mating Contact Pitch

0.07 inch

Akım Değeri

1A

Contact Style

RND PIN-SKT

Orientation

Straight

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Material Mating

Beryllium Copper

Sıra Sayısı

2

Çalışma Sıcaklığı

-55°C~125°C

Seri

117

Body Breadth

0.694 inch

Body Length Or Diameter

1.839 inch

ECCN Kodu

EAR99

Pitch Post

0.070 1.78mm

Contact Resistance

10mOhm

Number Of Contacts

52

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Radyasyon Dayanımı

No

Dielectric Withstanding Voltage

1400VAC V

Number Of Positions Or Pins Grid

52 (2 x 26)

Pcb Contact Pattern

RECTANGULAR

Insulation Resistance

10000000000Ohm

Terminal Adımı

1.778mm

Contact Material Post

Brass

HTS Kodu

8536.69.40.40

Lead Length

3.175mm

Özellikler

Open Frame

Body Depth

0.165 inch

Yayın Yılı

2012

Pitch Mating

0.070 1.78mm

Ambalaj

Bulk

Flammability Rating

UL94 V-0

Pcb Contact Row Spacing

0.6 mm

Parça Durumu

Active

Contact Finish Post

Tin

Contact Finish Thickness Mating

29.5μin 0.75μm

RoHS Durumu

ROHS3 Compliant
