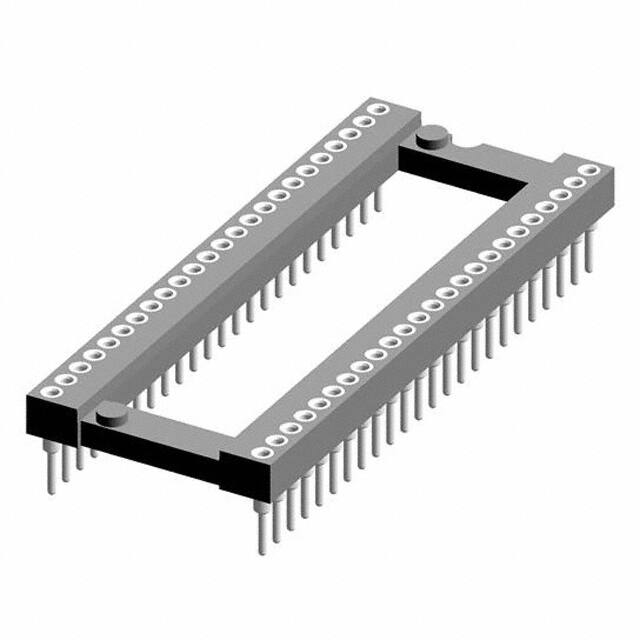

117-83-648-41-005101

Teknik Özellikler

Tip

DIP, 0.6 (15.24mm) Row Spacing

Terminal

Solder

Montaj Tipi

Through Hole

Mating Contact Pitch

0.07 inch

Material Flammability Rating

UL94 V-0

Çalışma Sıcaklığı

-55°C~125°C

Akım Değeri

1A

Contact Style

RND PIN-SKT

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Material Mating

Beryllium Copper

Body Length Or Diameter

1.697 inch

Seri

117

Body Breadth

0.694 inch

Contact Resistance

10mOhm

Pin Sayısı

48

Pitch Post

0.070 1.78mm

Number Of Positions Or Pins Grid

48 (2 x 24)

Pcb Contact Pattern

RECTANGULAR

Number Of Contacts

48

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Dielectric Withstanding Voltage

1400VAC V

Lead Length

3.175mm

Terminal Adımı

1.778mm

Insulation Resistance

10000000000Ohm

Contact Material Post

Brass

Pcb Contact Row Spacing

0.6 mm

Özellikler

Open Frame

Yayın Yılı

2012

Body Depth

0.165 inch

Pitch Mating

0.070 1.78mm

Ambalaj

Bulk

Flammability Rating

UL94 V-0

Termination Post Length

0.125 3.18mm

Contact Finish Mating

Gold

Fabrika Tedarik Süresi

10 Weeks

Montaj

Through Hole

Contact Finish Post

Tin

Parça Durumu

Active

Contact Finish Thickness Mating

29.5μin 0.75μm

RoHS Durumu

ROHS3 Compliant
