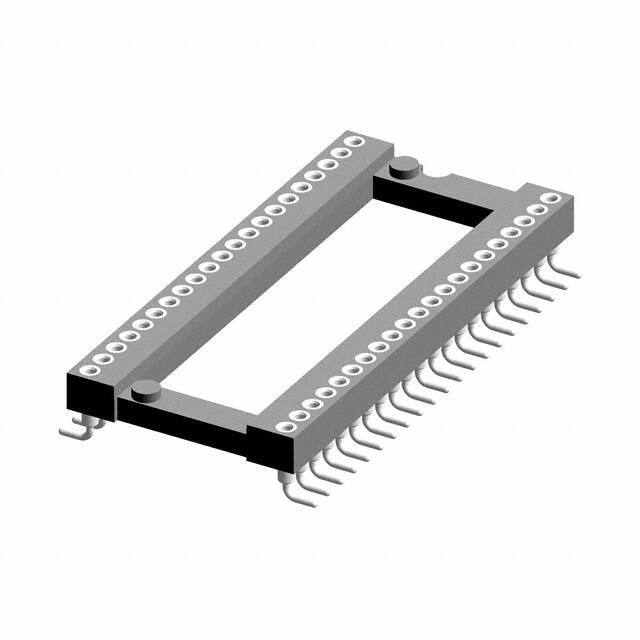

117-83-642-41-105101

Teknik Özellikler

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Material Mating

Beryllium Copper

Akım Değeri

1A

Contact Style

RND PIN-SKT

Çalışma Sıcaklığı

-55°C~125°C

Material Flammability Rating

UL94 V-0

Montaj Tipi

Through Hole

Mating Contact Pitch

0.07 inch

Tip

DIP, 0.6 (15.24mm) Row Spacing

Terminal

Solder

Pitch Post

0.070 1.78mm

Contact Resistance

10mOhm

Pin Sayısı

42

Body Breadth

0.694 inch

Seri

117

Body Length Or Diameter

1.484 inch

Contact Material Post

Brass

Insulation Resistance

10000000000Ohm

Lead Length

3.175mm

Dielectric Withstanding Voltage

1400VAC V

Number Of Contacts

42

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Number Of Positions Or Pins Grid

42 (2 x 21)

RoHS Durumu

ROHS3 Compliant

Contact Finish Post

Tin

Parça Durumu

Active

Contact Finish Thickness Mating

29.5μin 0.75μm

Montaj

Through Hole

Contact Finish Mating

Gold

Termination Post Length

0.125 3.18mm

Fabrika Tedarik Süresi

10 Weeks

Ambalaj

Bulk

Flammability Rating

UL94 V-0

Özellikler

Open Frame

Yayın Yılı

2012

Body Depth

0.22 inch

Pitch Mating

0.070 1.78mm
