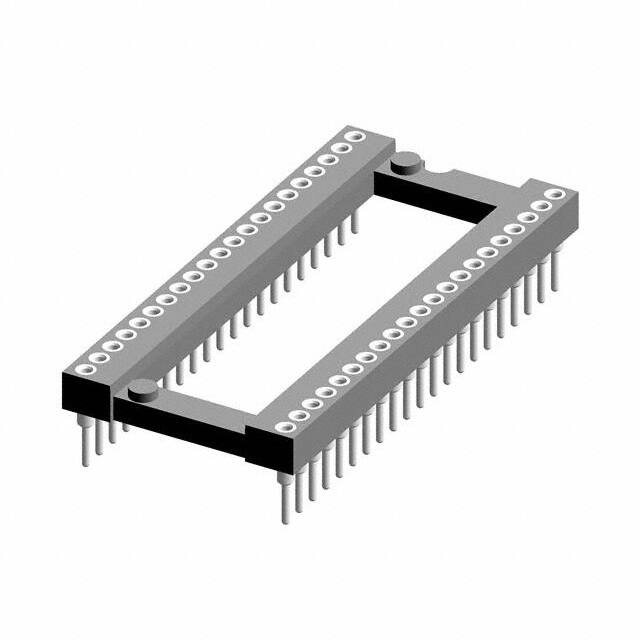

117-83-642-41-005101

Teknik Özellikler

Sıra Sayısı

2

Çalışma Sıcaklığı

-55°C~125°C

Akım Değeri

1A

Contact Style

RND PIN-SKT

Orientation

Straight

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Material Mating

Beryllium Copper

Tip

DIP, 0.6 (15.24mm) Row Spacing

Terminal

Solder

Montaj Tipi

Through Hole

Mating Contact Pitch

0.07 inch

Material Flammability Rating

UL94 V-0

Contact Resistance

10mOhm

ECCN Kodu

EAR99

Pitch Post

0.070 1.78mm

Body Length Or Diameter

1.484 inch

Seri

117

Body Breadth

0.694 inch

Lead Length

3.175mm

Terminal Adımı

1.778mm

Insulation Resistance

10000000000Ohm

Contact Material Post

Brass

HTS Kodu

8536.69.40.40

Number Of Positions Or Pins Grid

42 (2 x 21)

Pcb Contact Pattern

RECTANGULAR

Number Of Contacts

42

Radyasyon Dayanımı

No

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Dielectric Withstanding Voltage

1400VAC V

Termination Post Length

0.125 3.18mm

Contact Finish Mating

Gold

Fabrika Tedarik Süresi

10 Weeks

Montaj

Through Hole

Contact Finish Post

Tin

Parça Durumu

Active

Contact Finish Thickness Mating

29.5μin 0.75μm

RoHS Durumu

ROHS3 Compliant

Pcb Contact Row Spacing

0.6 mm

Özellikler

Open Frame

Body Depth

0.165 inch
